HRS Ferritic · Certified Supplier & Stockist

SS 436/436L / AISI 436 Coils
Exporter / Importer / Supplier

Best Ferritic Stainless Steel · Molybdenum & Niobium Stabilized · Superior Corrosion Resistance · High Thermal Stability · Cost-Effective

ASTM A240 UNS S43600 EN 1.4526 JIS SUS 436/436L
code Code
📋 Table of Contents
1Introduction to SS 436/436L Coils
2Overview of AISI 436 Coils
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of SS 436/436L Coils
7Chemical Properties
8Mechanical Properties
9Pricing List
10Equivalent Grades
11FAQs
HRS Ferritic · SS 436/436L Coils Supplier & Stockist

SS 436/436L / AISI 436 Coils
Exporter / Importer / Supplier

HRS Ferritic is a well-known name for stainless steel, specialising in high-performance ferritic stainless products. We are globally recognised as a dependable SS 436/436L Coils supplier, SS 436/436L Coils stockist, and SS 436/436L Coils importer, also known as AISI 436 Coils, offering materials from reputable and certified manufacturers. With a keen commitment to quality, consistency and customer satisfaction, we deliver stainless steel solutions that comply with international standards as well as demanding industrial requirements.

  • Molybdenum increases resistance to pitting
  • Niobium stabilization prevents carbide precipitation
  • Low carbon content enhances weld strength
  • Excellent resistance to stress corrosion cracking
  • Superior thermal stability and oxidation resistance
  • Cost-effective alternative to austenitic grades

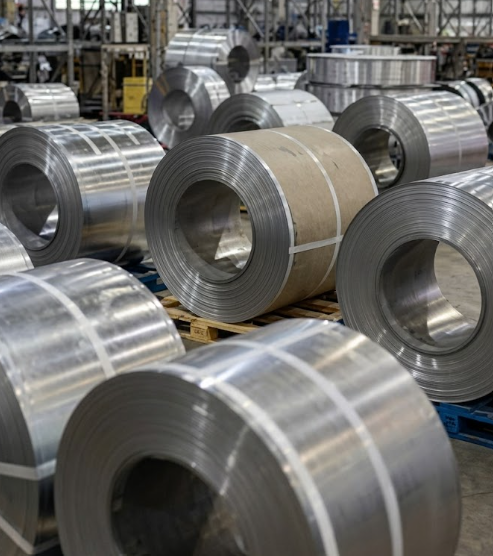

SS 436/436L Coils
436LFerritic Grade
Grade Overview

What are SS 436/436L Coils or AISI 436 or 436L Coils?

SS 436/436L AISI 436 Coils comprise ferritic stainless steels alloyed with chromium and stabilized with molybdenum and niobium. These additives improve resistance to corrosion in high temperatures and chloride environments. The "L" version indicates less carbon, enhancing weldability and intergranular corrosion resistance. Chromium creates a protective oxide coating, safeguarding from chemical attack.

16.0–18.0%
Chromium Content
Mo + Nb
Stabilized Elements
430–580
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis

Metallurgical Characteristics of SS 436 / SS 436L Coils

The specific metallurgical balance enables SS 436/436L coils to function consistently in harsh conditions.

C
Carbon
Adds hardness and strength; lower in SS 436L to improve weldability.
Mn
Manganese
Enhances toughness and helps in deoxidation during steelmaking.
Si
Silicon
Improves strength and oxidation resistance.
Cr
Chromium
Provides corrosion and oxidation resistance; key for stainless steel formation.
Ni
Nickel
Stabilizes the structure and improves toughness and corrosion resistance.
Mo
Molybdenum
Enhances resistance to pitting and crevice corrosion.
Nb
Niobium
Stabilization prevents carbide precipitation, improving high-temp performance.
P / S
Phosphorus / Sulfur
Controlled to maintain toughness and improve machinability.
Technical Data

Specifications for SS 436/436L Coils or AISI 436 Coils

ASTM A240 TP436 / AISI 436 · UNS S43600 · EN 1.4526 · JIS SUS 436/436L

Specification Details
ASTM / AISI A240 TP436 / AISI 436; A240 TP436L / AISI 436L
UNS UNS S43600
EN EN 1.4526
DIN EN 1.4526
ISO X6CrMoNb171
JIS SUS 436 / SUS 436L
Product Form Coils / Plates / Sheets
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500mm, 3000mm, 3500mm, etc
Standard Lengths 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000mm, etc
Custom Width Cut Available as per customer requirement
Custom Length Cut Available as per customer requirement
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble wraps, Customized
Inventory

Available Stock & Product Forms

🌀

Coils

High-performance SS 436/436L coils in various finishes for immediate delivery.

🪨

Plates

Heavy plates and sheets for structural and industrial frameworks.

🔲

Strips

Precision slitting coils and thin foils from 0.05 mm thickness.

✂️

Blanks

Circles, rings, and custom-cut blanks tailored to requirements.

🧪

Chromium (Cr)

16.0 – 18.0% — High range for superior corrosion and oxidation resistance.

⚫

Molybdenum (Mo)

0.75 – 1.25% — Enhances resistance to pitting and crevice corrosion.

⚖️

Carbon (C)

≤ 0.03% — Low levels for improved weldability and ductility.

✨

Niobium (Nb)

Stabilized — Prevents carbide precipitation and ensures high-temp stability.

💪

Tensile Strength

430 – 580 MPa — Solid structural integrity for extreme environments.

🎯

Yield Strength

≥ 210 MPa — Reliable performance in forming and fabrication.

📏

Elongation

20 – 25% — Excellent ductility for bending and complex shapes.

⚡

Hardness

≤ 200 HB — Optimized for fabrication and surface durability.

Product Range

Different types of SS 436/ 436L Coils or AISI 436 Coils

As a top AISI 436 Importer for Coils, we maintain a vast selection for immediate delivery.

Hot Rolled SS 436 / 436L Coils
Cold Rolled SS 436 or 436L Coils
Annualized Ferritic SS 436 / 436L Coils
Pickled & Oiled SS 436 or 436L Coils
High Precision Stainless Steel Coils
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical properties of SS 436/ 436L Coils or AISI 436 or 436L Coils

Specifically alloyed with Molybdenum and Niobium to ensure resistance to crevice corrosion and pitting in harsh industrial environments.

Element Percentage (%)
Carbon (C) ≤ 0.03
Chromium (Cr) 16.0 – 18.0
Molybdenum (Mo) 0.75 – 1.25
Niobium (Nb) Stabilized
Manganese (Mn) ≤ 1.00
Performance Data

Mechanical Property of SS 436/ 436L Coils or AISI 436 Coils

430 – 580
Tensile Strength
MPa — Solid structural integrity for extreme environments
≥ 210
Yield Strength
MPa — Reliable performance in forming and fabrication
20 – 25%
Elongation
Excellent ductility for bending and complex shapes
≤ 200
Hardness (HB)
Optimized for fabrication and surface durability
Moderate
Impact Resistance
Balanced toughness for heavy-duty industrial use
Cost Information

Price list for SS 436/ 436L Coils or AISI 436 Coils

Price Factors

Factors that Influence the Price of SS 436/436L Coils

  • Market trends for molybdenum and chrome
  • Thickness and Width of Coil
  • Processing and surface finishing
  • Import and transportation duty
  • Bulk order volume
Get A Free Quote
Connect with HRS!
High-quality SS 436 and 436L Coils with competitive prices
📧 info@hrsferritic.com
International Standards

Equivalent Grades to SS 436/ 436L Coils or AISI 436 Coils

Global metallurgical designations for SS 436 and 436L variants.

Standard / System SS 436 SS 436L
ASTM / ASME (USA) A240 TP436 / AISI 436 A240 TP436L / AISI 436L
UNS (USA) S43600 —
EN / European 1.4526 —
DIN (German) X6CrMoNb171 —
JIS (Japan) SUS 436 SUS 436L
GB / Chinese 12Cr17MoNb —
GOST (Russia) 08Х17МТ —
📦
Ready Stock Availability & Product Forms
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
  • Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated wooden crates, moisture-protected
Use Cases

Applications and the Importance of SS 436/436L Coils

🌾 Fertilizer Industry
Heaters, storage tanks, and pipe systems exposed to moisture and corrosive fertilizers.
🧪 Chemical Processing
Condensers, reactor vessels and heat exchangers requiring oxidation resistance.
✈️ Aerospace
Structural components and exhaust systems needing durability and thermal stability.
⛽ Oil & Gas
Exhaust systems, structural supports, and processing machines in extreme conditions.
💊 Pharmaceuticals
Cleanliness-critical equipment, supports, and enclosures to ensure hygiene.
🏗️ Infrastructure
Architectural panels, roof systems, or structural strengthening exposed to elements.
⚡ Electric & EV
Battery enclosures, thermal shields, and mounting brackets for EV battery systems.
🚗 Automotive
Exhaust mufflers, exhaust pipes, catalytic converter housings, and heat shields.
Why HRS Ferritic

Why choose HRS Ferritic for SS 436 or 436L Coils?

HRS Ferritic is dedicated to providing high-quality ferritic stainless steel solutions that meet global needs. With sourcing expertise and a customer-centric focus, we are your trusted SS 436/ 436L Coils or AISI 436 Coils Importer & Supplier.

Trusted SS 436 / 436L Coils Supplier & Stockist
Sourced from reliable and certified mills
Competitive pricing for bulk quantities
Specific dimensions, finishes and colours
Rapid delivery and efficient logistics
Full technical support and documentation
Mill test certificates with every shipment
Globally recognized supply network
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about SS 436/436L Coils.

SS 436 / 436L coils are ferritic stainless steel coils with enhanced corrosion resistance, often used where moderate corrosion resistance and heat resistance are needed.
Thicker coils cost more because they contain greater material mass and require additional rolling and processing.
Larger or non‑standard widths typically increase pricing due to higher raw material consumption and extra handling or mill setup.
Yes, premium finishes like smoother or speciality surfaces increase cost because they involve additional finishing steps and quality checks.
Fluctuations in the prices of base metals like iron and alloying elements such as chromium directly affect coil pricing since raw materials make up the bulk of the cost.
SS 436 / 436L coils are uniquely suited for exterior architectural components and automotive trim parts where enhanced atmospheric corrosion resistance and formability are important.
