HRS Ferritic · Certified Supplier & Stockist

SS 416 / AISI 416 Coils
Exporter / Importer / Supplier

Free-Machining Martensitic Stainless Steel Coils · Superior Machinability · High Hardness · Controlled Sulfur Enrichment · Cost-Effective Precision Solutions

ASTM A240 / ASME SA240 UNS S41600 EN 1.4005 JIS SUS 416
📋 Table of Contents
1Introduction to SS 416 Coils
2Overview of SS 416 Coils
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of SS 416 Coils
7Chemical Properties
8Mechanical Properties
9Pricing List
10Equivalent Grades
11FAQs
HRS Ferritic · SS 416 Coils Supplier & Stockist

SS 416 / AISI 416 Coils
Exporter / Importer / Supplier

HRS Ferritic is a reputable and well-established brand in the stainless steel business that supplies high-quality stainless steel products for domestic and global markets. As a dependable SS 416 Coils/ AISI 416 Coils Supplier, SS 416 Coils Importer and SS 416 Coils Stockist, we source products that are sourced from ISO-certified and globally accredited mills and ensure the strictest compliance with international standards. With an emphasis on quality control as well as timely delivery and customer-focused service, we cater to numerous industries.

  • High carbon content for hardness and strength
  • Sulfur enriched for superior machinability
  • Excellent cutting capabilities for precision parts
  • Martensitic structure for hardening and tempering
  • Maintains dimensional accuracy during machining
  • Economical and efficient for mass production

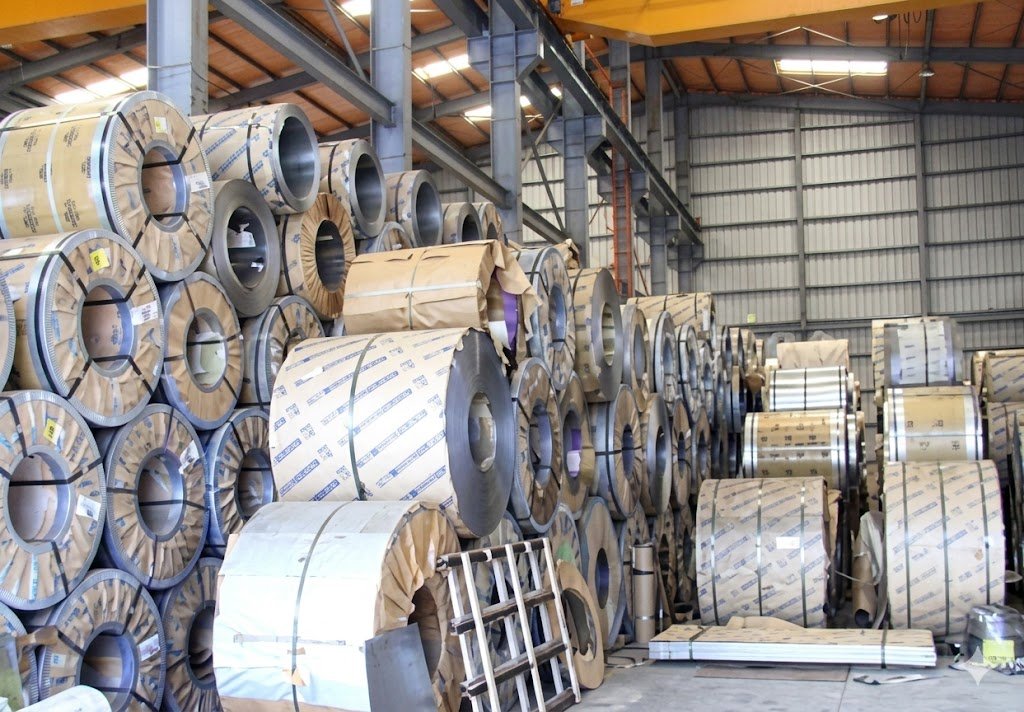

SS 416 Coils
416Martensitic Grade
Grade Overview

What are SS 416 Coils? — SS 416 Coils / AISI 416 Coils

The SS416 coils, also known in the industry as the AISI Coils, comprise martensitic steel stainless coils that are enriched with sulfur in order to increase their machinability. This grade has been specifically developed to be used in applications that require superior machinability, high corrosion resistance, and high strength. The SS 416 grade has better cutting capabilities than martensitic grades of other types, making it ideal for precision-machined parts.

12.0–14.0%
Chromium Content
Free Machining
Sulfur Enriched
620–860
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis

Metallurgical Characteristics Stainless Steel SS 416 Coils

The unique chemical profile of SS 416 allows for superior cutting speeds and mechanical strength.

Fe
Iron
The base metal forming the primary structure of the alloy.
Cr
Chromium
Provides corrosion resistance and oxidation resistance by forming a protective surface layer.
C
Carbon
Increases hardness and strength; improves machinability but reduces corrosion resistance slightly.
S
Sulfur
Significantly improves machinability; key element that makes SS 416 a free-machining stainless steel.
Mn
Manganese
Improves strength, hardness, and hot working properties.
Si
Silicon
Enhances strength and oxidation resistance; helps in deoxidizing during steel production.
P
Phosphorus
Improves machinability but can reduce toughness if present in higher amounts.
Technical Data

Specifications for SS 416 Coils/ AISI 416 Coils

ASTM A240 / ASME SA240 · UNS S41600 · EN 1.4005 · JIS SUS 416

Specification Details
ASTM / ASME ASTM A240 / ASME SA240 (Plate, Sheet, and Strip)
UNS UNS S41600
EN EN 1.4005
DIN 1.4005
ISO ISO X12CrS13
JIS SUS 416
Product Form Coils / Plates
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500mm, 3000mm, 3500mm, etc
Standard Lengths 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000mm, etc
Custom Width Cut Available as per customer requirement
Custom Length Cut Available as per customer requirement
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble wraps, Customized
Inventory

Available Stock & Product Forms

🌀

Coils

High-quality 416 coils in various finishes for immediate delivery.

🪨

Plates

Heavy plates and sheets for structural and industrial frameworks.

🔲

Strips

Precision slitting coils and thin foils from 0.05 mm thickness.

✂️

Blanks

Circles, rings, and custom-cut blanks tailored to requirements.

🧪

Chromium (Cr)

12.0 – 14.0% — Provided for moderate corrosion and oxidation resistance.

⚫

Carbon (C)

≤ 0.15% — Higher carbon levels for increased hardness and strength.

⚖️

Manganese (Mn)

≤ 1.25% — Improves strength and hot working properties.

✨

Sulfur (S)

0.15 – 0.35% — The key element that makes SS 416 a free-machining grade.

💪

Tensile Strength

620 – 860 MPa — High strength for mechanical and structural parts.

🎯

Yield Strength

≥ 415 MPa — Reliable minimum performance for industrial precision.

📏

Elongation

12 – 20% — Balanced ductility for varied mechanical applications.

⚡

Hardness

230 – 300 HB — Excellent hardness suitable for precision components.

Product Range

Types of SS 416 Coils AISI 416 Coils

As a top AISI/SS 416 Coils Importer and stockist, we maintain the largest selection of finishes for immediate delivery.

Hot Rolled SS 416 Coils
Cold Rolled SS 416 Coils
Annexed SS 416 Coils
Tempered and hardened SS 416 Coils
Polished SS 416 Coils
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical Property of SS 416 Coils AISI 416 Coils

Enriched sulfur content increases cutting efficiency and reduces friction, making these coils ideal for high-speed automated machining processes.

Element Composition (%)
Carbon (C) ≤ 0.15
Chromium (Cr) 12.0 – 14.0
Sulfur (S) 0.15 – 0.35
Manganese (Mn) ≤ 1.25
Silicon (Si) ≤ 1.0
Phosphorus (P) ≤ 0.06
Performance Data

Mechanical properties of SS 416 Coils AISI 416 Coils

620 – 860
Tensile Strength
MPa — Solid structural integrity for mechanical applications
≥ 415
Yield Strength
MPa — Reliable performance in forming and heavy fabrication
12 – 20%
Elongation
Balanced ductility for precision bending and complex parts
230 – 300
Hardness (HB)
Superior surface durability and wear resistance
Moderate
Impact Resistance
Reliable performance under mechanical stress
Cost Information

Price Lists of SS 416 Coils AISI 416 Coils

Price Factors

Factors that Influence the Price of SS 416 Coils

  • Raw material and alloying element costs
  • Dimensions of coils and surface finish
  • Requirements for heat treatment
  • Order volume and delivery schedule
  • Customs duties, logistics and import duties
Get A Free Quote
Connect with HRS!
Premium certified SS 416 Coils at best value
📧 info@hrsferritic.com
International Standards

Equivalent Grades to SS 416 Coils / AISI Coils 416

Global metallurgical designations for SS 416 across all major standards.

Standard / Country Grade / Designation
AISI / ASTM (USA) 416
UNS S41600
EN (Europe) 1.4005
DIN (Germany) X12CrS13
BS (British Standard) 416S21
JIS (Japan) SUS 416
Swedish SS SS 2380
France (AFNOR / NF) Z11CF13
Italy (UNI) X12CrS13
GOST (Russia) 12Х13
GB (China) Y12CrS13 / 1Cr13S
ISO ISO X12CrS13
📦
Ready Stock Availability & Product Forms
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
  • Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated wooden crates, moisture-protected
Use Cases

Applications and Importance of SS 416 Coils

🌾 Fertilizer Industry
Used in fasteners, structural components, and processing machines due to toughness and ability to machine.
🧪 Chemical Processing
Ideally suitable for shafts, valves, fittings, and pumps that are exposed to chemical conditions.
✈️ Aerospace
Used for precision-machined brackets, screws, and fasteners where dimensional precision is essential.
⛽ Oil & Gas
Used in mechanical components, couplings, and equipment housings that need high wear resistance.
💊 Pharmaceuticals
Best choice for machinery parts requiring high strength, smooth finish and repeatable manufacturing.
🏗️ Construction
Used in support brackets, structures, and load-bearing parts to ensure strength and durability.
⚡ Electric Sector & EV
Used in enclosures as well as mounting systems and frames for support because of mechanical stability.
🚗 Automotive
Widely used in shafts, gears, bushings and engine parts for excellent wear resistance and machinability.
Why HRS Ferritic

Why choose HRS Ferritic for SS 416 Coils / AISI 416 Coils?

HRS Ferritic is committed to offering top-quality stainless steel solutions that comply with international standards and the demands of the industry. With its expertise in technical knowledge and solid supply chain, it ensures reliability and long-term value to every customer.

Trusted SS 416 Coils / AISI 416 Coils Supplier
Materials sourced from certified world mills
Complete quality control and strict traceability
Pricing competitive and availability in bulk
Globally reliable and delivery on time
Expertise as Importer of AISI 416 Coils
Customized sizes, colours and packaging options
Supply to leading global industrial regions
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about SS 416 Coils / AISI 416 Coils.

Larger widths and customized lengths of SS 416 Coils require more rolling capacity and handling, which increases the overall cost.
Thicker AISI 416 Coils consume more raw material and weigh more, resulting in higher base and transportation costs.
Additional finishes like annealed, pickled, or polished surfaces require extra processing, chemicals, and labor, raising the final price.
Yes, variations in chromium, carbon, and steel scrap prices directly influence the manufacturing cost and market price of AISI 416 Coils.
High global demand or limited production capacity can increase the price of SS 416 Coils due to scarcity and logistical factors.
Yes, non-standard dimensions or specialized finishes require additional processing, which adds to the total cost of AISI 416 Coils.
SS 416 Coils can be easily machined and hardened, making them ideal for screws, bolts, and other precision fasteners.
Yes, AISI 416 Coils are commonly used in automotive shafts, gears, and exhaust parts due to their high strength, machinability, and moderate corrosion resistance.
