HRS Ferritic · Sheet Supplier / Sheet Stockist / Sheet Importer

SS 420 / 420J1 / 420J2 Sheet

Martensitic Stainless Steel · High Hardness & Strength · Good Corrosion Resistance · Global Supply

ASTM A240 / ASME SA240 UNS S42000 / S42010 EN 1.4021 / 1.4028 JIS SUS 420 / 420J1 / 420J2
📋 Table of Contents
1Introduction to SS 420 Series
2SS 420 / 420J1 / 420J2 Overview
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of SS 420 Sheet
7Chemical Properties
8Mechanical Properties
9Pricing List
10Equivalent Grades
11FAQs
HRS Ferritic · SS 420 / 420J1 / 420J2 Sheet Supplier, Stockist & Importer

Introduction to
SS 420 / 420J1 / 420J2 Sheet

HRS Ferritic is a well-established name in the stainless steel industry, offering premium-quality ferritic and martensitic stainless steel products to global markets. As a reliable SS 420 / 420J1 / 420J2 Sheet Supplier, Stockist, and Importer, we source materials from valuable and certified manufacturers to ensure consistent quality and performance. With strong logistics, technical expertise, and customer-focused service, we serve industries such as automotive, oil & gas, construction, pharmaceuticals, and heavy engineering.

  • High hardness after heat treatment
  • Good wear and abrasion resistance
  • Moderate corrosion resistance
  • Excellent edge retention
  • Cost-effectiveness vs. high-alloy stainless steels
  • Ideal where mechanical strength is critical

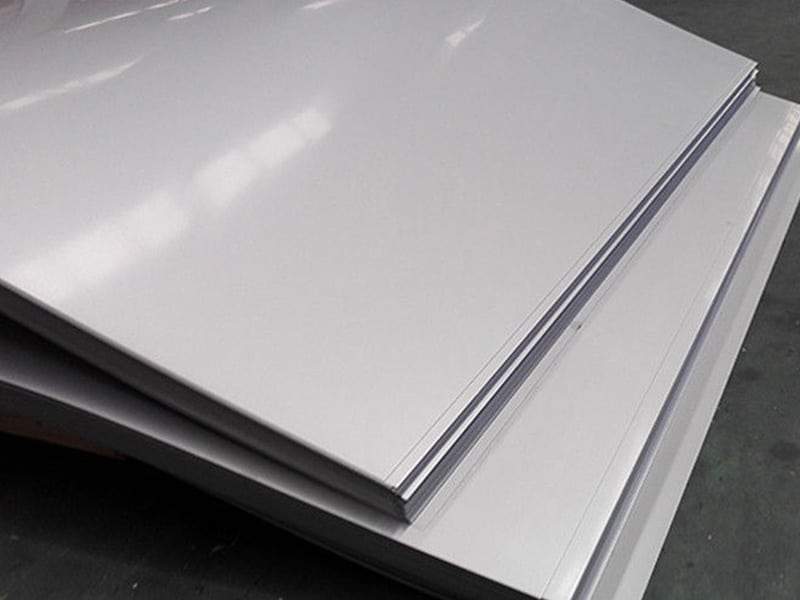

SS 420 / 420J1 / 420J2 Sheet in India
420Martensitic Grade
Grade Overview

SS 420 / 420J1 / 420J2 Sheet — Grade Overview

SS 420 / 420J1 / 420J2 are martensitic stainless steel sheets known for their high hardness, strength, and good corrosion resistance in mild environments. SS 420 is a chromium-based stainless steel that can be heat-treated to achieve high hardness. Variants 420J1 and 420J2 differ mainly in carbon content, with 420J2 offering higher hardness and wear resistance.

12–14%
Chromium Content
Martensitic
Steel Structure
700–800
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis

Metallurgical Characteristics of SS 420 / 420J1 / 420J2 Sheet

Each element plays a precise role in delivering the high hardness, strength and durability of the SS 420 series.

C
Carbon
Increases hardness and strength. Higher carbon improves wear resistance and hardenability. (420J2 has higher carbon than 420J1, giving higher hardness.)
Cr
Chromium
Provides corrosion and oxidation resistance by forming a passive protective layer on the surface.
Mn
Manganese
Improves strength and toughness; helps improve hot working properties.
Si
Silicon
Enhances strength and oxidation resistance; acts as a deoxidizer during steelmaking.
P
Phosphorus
Improves machinability but can reduce ductility and toughness if excessive.
S
Sulfur
Improves machinability; too much may reduce toughness and corrosion resistance.
Fe
Iron
Base metal forming the primary structure of the alloy.
Technical Data

Specifications — SS 420 / 420J1 / 420J2 Sheet

ASTM A240 · ASME SA240 · UNS S42000 / S42010

Specification Details
ASTM / ASME ASTM A240 / ASME SA240 (Plate, Sheet, and Strip)
UNS UNS S42000 / UNS S42010 / UNS S42010
EN / DIN EN 1.4021 / EN 1.4021 / EN 1.4028
ISO ISO X20Cr13 / ISO X20Cr13 / ISO X30Cr13
JIS SUS 420 / SUS 420J1 / SUS 420J2
Product Form Sheets / Plates
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm, etc.
Standard Lengths 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000 mm, etc.
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble Wrap, Customized
Inventory

Available Stock & Product Forms

🪨

Sheets

High-quality flat sheet products in various thicknesses for industrial applications.

🔩

Pipes

Seamless and welded pipes for high-temperature and corrosion-resistant use.

🔲

M. IPA

Modified Austenitic & Ferritic SS with excellent mechanical properties.

🌀

Coils & Strips

Precision-rolled coils and strips for specialized forming operations.

🧪

Chromium (Cr)

12.0 – 14.0% — Corrosion and oxidation resistance across all three grades.

⚫

Carbon (C)

0.15–0.40% — Higher in 420J2 for increased hardness and wear resistance.

⚙️

Manganese (Mn)

≤ 1.00% — Improves strength, toughness and hot-working properties.

⚖️

Iron (Fe)

Balance — Forms the primary martensitic structure of the alloy.

💪

Tensile Strength

700 / 750 / 800 MPa — For SS 420 / 420J1 / 420J2 respectively.

🎯

Yield Strength

345 / 380 / 415 MPa — Increasing with carbon content across variants.

📏

Elongation

20% / 18% / 15% — SS 420 most ductile; 420J2 highest hardness.

🔬

Hardness (HRC)

35–45 / 40–48 / 45–52 — Higher hardness in 420J2 for wear-critical use.

Product Range

Types of SS 420 / 420J1 / 420J2 Sheet

As a leading AISI/SS 420 / 420J1 / 420J2 Sheet Importer, we offer customized solutions for diverse applications.

SS 420 Annealed Sheets
SS 420J1 Cold Rolled Sheets
SS 420J2 Hardened & Tempered Sheets
Polished SS 420 Sheets
Cut-to-Size SS 420 / 420J1 / 420J2 Sheets
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical Properties of SS 420 / 420J1 / 420J2 Sheet

Carbon content varies across the three grades — 420J2 has the highest carbon, giving maximum hardness and wear resistance.

Element SS 420 420J1 420J2
Carbon (C) 0.15 – 0.30 0.16 – 0.25 0.26 – 0.40
Chromium (Cr) 12.0 – 14.0 12.0 – 14.0 12.0 – 14.0
Manganese (Mn) ≤ 1.00 ≤ 1.00 ≤ 1.00
Silicon (Si) ≤ 1.00 ≤ 1.00 ≤ 1.00
Phosphorus (P) ≤ 0.040 ≤ 0.040 ≤ 0.040
Sulfur (S) ≤ 0.030 ≤ 0.030 ≤ 0.030
Performance Data

Mechanical Properties of SS 420 / 420J1 / 420J2 Sheet

700 / 750 / 800
Tensile Strength
MPa — SS 420 / 420J1 / 420J2 respectively
345 / 380 / 415
Yield Strength
MPa — SS 420 / 420J1 / 420J2 respectively
20% / 18% / 15%
Elongation
SS 420 most ductile; 420J2 highest hardness
35–45 HRC
Hardness — SS 420
After heat treatment
40–48 HRC
Hardness — 420J1
After heat treatment
45–52 HRC
Hardness — 420J2
Highest hardness for wear-critical use
Cost Information

Price List for SS 420 / 420J1 / 420J2 Sheet

Price Factors

Factors That Affect the Price

  • Raw material and chromium cost
  • Sheet thickness and finish
  • Heat treatment and processing
  • Order quantity
  • Delivery location
  • Additional processing and logistics
Contact Us Today
Get A Quote!
Best value & assured quality · Fast replies from HRS
📧 info@hrsferritic.com
International Standards

Equivalent Grades for SS 420 / 420J1 / 420J2 Sheet

SS 420 series is recognized across all major global standards with equivalent metallurgical designations.

Standard / Country SS 420 SS 420J1 SS 420J2
AISI (USA) 420 420 (Low Carbon Type) 420 (High Carbon Type)
ASTM (USA) Type 420 Type 420 Type 420
UNS S42000 S42010 S42010
ISO (ISO 15510) X20Cr13 X20Cr13 X30Cr13
EN (Europe) 1.4021 / X20Cr13 1.4021 / X20Cr13 1.4028 / X30Cr13
DIN (Germany) X20Cr13 X20Cr13 X30Cr13
JIS (Japan) SUS 420 SUS 420J1 SUS 420J2
BS (United Kingdom) 420S29 / 420S37 420S29 420S37
AFNOR (France) Z20C13 Z20C13 Z30C13
UNI (Italy) X20Cr13 X20Cr13 X30Cr13
SIS (Sweden) 2303 2303 2304
GB (China) 2Cr13 2Cr13 3Cr13
GOST (Russia) 20Х13 20Х13 30Х13
📦
Ready Stock & Product Forms
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
  • Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated wooden crates, shrink-wrapped & moisture-protected
Use Cases

Applications and Importance of SS 420 / 420J1 / 420J2 Sheet

🌾 Fertilizer Industry
Wear-resistant components, liners, and mechanical parts for fertilizer processing.
🧪 Chemical Processing
Valve components, shafts, and equipment parts requiring strength and corrosion resistance.
✈️ Aerospace
Non-critical structural and tooling components due to high strength.
⛽ Oil & Gas
Pump parts, valve trims, and wear-resistant components for demanding environments.
💊 Pharmaceuticals
Machinery components where durability and cleanliness are required.
🏗️ Construction & Infrastructure
Industrial fittings, structural components, and fabrication works.
⚡ EV & Electrical
Tooling, enclosures, and support structures for electrical and EV applications.
🚗 Automotive
Shafts, fasteners, springs, and wear-resistant automotive components.
Why HRS Ferritic

Why Choose HRS Ferritic for SS 420 / 420J1 / 420J2 Sheet?

HRS Ferritic is committed to supplying high-quality stainless steel products that meet international standards and customer expectations. Our experience, inventory strength, and service excellence make us a preferred global supplier. Contact HRS today for premium SS 420 / 420J1 / 420J2 Sheets and dependable supply solutions.

Trusted SS 420 / 420J1 / 420J2 Sheet Supplier & Stockist
Sourced from valuable and certified manufacturers
Wide range of sizes, finishes, and conditions
Competitive pricing and reliable delivery
Complete material traceability and test certificates
EN 10204 3.1 / 3.2 documentation
Dedicated technical and customer support
Supply to 20+ countries worldwide
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about SS 420 / 420J1 / 420J2 Sheet.

These are martensitic stainless steel sheets with high hardness, moderate corrosion resistance, and good wear resistance, suitable for precision components.
They are used for cutlery, surgical instruments, valve parts, and machine components requiring high strength and hardness.
Yes, these sheets can be heat-treated to enhance hardness and strength, though their corrosion resistance is moderate.
