SS 410DB · Certified Supplier & Stockist

SS 410DB / AISI 410DB Coils
Exporter / Importer / Supplier

Martensitic Stainless Steel · Improved Drawability & Forming · Strength & Hardness · Moderate Corrosion Resistance · Deep Drawing Engineered

ASTM A240 / ASME SA240 UNS S41000 (Modified) EN 1.4006 ISO X12Cr13
📋 Table of Contents
1Introduction to SS 410DB Coils
2Overview of AISI 410DB Coils
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of 410DB Coils
7Chemical Properties
8Mechanical Properties
9Pricing List
10Equivalent Grades
11FAQs
HRS Ferritic · SS 410DB Coils Exporter & Stockist

SS 410DB / AISI 410DB Coils
Exporter / Importer / Supplier

HRS Ferritic is a recognized name in the global stainless steel supply chain, specializing in ferritic and martensitic stainless steel grades for critical industrial applications. With strong sourcing partnerships and strict quality control, we have emerged as a dependable SS 410DB Coils / AISI 410DB Coils Supplier, AISI 410DB Coils Stockist, and Stainless Steel 410DB Coils Importer. The company delivers certified materials from valuable and trusted sources, ensuring consistent performance, competitive pricing, and timely delivery to domestic and international markets.

  • Improved drawability and forming characteristics
  • Specifically engineered for deep drawing
  • Retains inherent strength and hardness
  • Moderate corrosion resistance of AISI 410
  • Martensitic structure heat-treatable for strength
  • Cost-effective alternative to austenitic grades

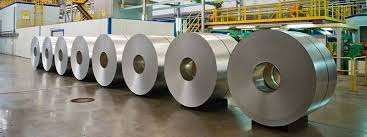

SS 410DB Coils
410DBMartensitic Grade
Grade Overview

Introduction & Overview — SS 410DB Coils

SS 410DB Coils, also referred to as AISI 410DB Coils, are martensitic stainless steel coils with controlled chemistry designed to offer improved drawability and forming characteristics compared to standard SS 410. The “DB” grade is specifically engineered for deep drawing and forming applications while retaining the inherent strength, hardness, and moderate corrosion resistance of AISI 410 stainless steel.

11.5 – 13.5%
Chromium Content
Martensitic
Microstructure
450 – 650
Tensile Strength MPa
0.5 – 100
Thickness Range mm
Composition Analysis

Metallurgical Characteristics SS 410DB Coils

Controlled chemistry and heat-treatable structure define the deep drawing performance of SS 410DB.

C
Carbon
Controlled levels increase hardness and strength; helps achieve martensitic structure.
Cr
Chromium
Provides corrosion resistance and oxidation resistance; forms a protective passive layer.
Mn
Manganese
Improves strength and hardness; enhances hot working properties.
Si
Silicon
Increases oxidation resistance and improves strength at elevated temperatures.
P
Phosphorus
Controlled amount to maintain toughness while assisting machinability.
S
Sulfur
Enhances machinability; levels are kept low to maintain high ductility.
Fe
Iron
Base element forming the primary structure of the alloy.
DB
Deep Drawing
Special grade modification for superior formability in complex shapes.
Technical Data

Specification of SS 410DB Coils / AISI 410DB Coils

ASTM A240 / ASME SA240 · UNS S41000 (Modified) · EN 1.4006 · ISO X12Cr13

Specification Details
ASTM / ASME ASTM A240 / ASME SA240 (Plate, Sheet, and Strip)
UNS S41000 (Modified for Deep Drawing)
EN / DIN 1.4006
ISO ISO X12Cr13
JIS SUS410 (DDQ/Modified)
Product Form Coils / Plates / Sheets
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500mm, 3000mm, 3500mm, etc
Standard Lengths 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000mm, etc
Custom Width Cut Available as per customer requirement
Custom Length Cut Available as per customer requirement
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble wraps, Customized
Inventory

Available Stock & Product Forms

🌀

Coils

Comprehensive range of SS 410DB coils including Cold Rolled and Hot Rolled options.

🪨

Plates

Precision sheets, heavy plates, and shim sheets available in stock.

🔲

Strips

Slitting coils, perforated coils, and thin foils from 0.05 mm available.

✂️

Blanks

Custom-cut blanks, circles, rings, and chequered plates for fabrication.

🧪

Chromium (Cr)

11.5 – 13.5% — Passive oxide layer provides resistance to oxidation and corrosion.

⚫

Carbon (C)

Controlled Low — Improves ductility without compromising mechanical strength.

⚖️

Manganese (Mn)

≤ 1.0% — Enhances hot working properties and structural hardness.

✨

Silicon (Si)

≤ 1.0% — Increases high-temperature strength and oxidation resistance.

💪

Tensile Strength

450 – 650 MPa — High-strength performance for load-bearing components.

🎯

Yield Strength

≥ 275 MPa — Reliable yield point for industrial engineering applications.

📏

Elongation

22 – 28% — Enhanced ductility ideal for deep drawing operations.

⚡

Hardness

160 – 200 HB — Balanced for wear resistance and dimensional stability.

Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Product Range

Types of SS 410DB Coils / AISI 410DB Coils

As a leading SS 410DB stockist, we offer a comprehensive range for varied industrial needs.

Cold Rolled SS 410DB Coils
Hot Rolled SS 410DB Coils
Annealed SS 410DB Coils
Custom Finish SS 410DB Coils
Application Sectors

Industries We Serve with SS 410DB Coils

Fertilizer
Fertilizer Industry
Used in drawn components, hoppers, covers, and housings where formability is required.
Chemical
Chemical Processing
Applied in deep-drawn shells, valve housings, and pump casings exposed to chemicals.
Aerospace
Aerospace
Used for formed brackets, fasteners, and structural components requiring thermal stability.
Oil Gas
Oil & Gas Sector
Utilized in drawn pump parts and valve bodies, offering mechanical reliability.
Pharmaceutical
Pharmaceutical Industry
Equipment enclosures, frames, and formed panels where dimensional accuracy is critical.
Automobile
Automotive Industry
Deep-drawn exhaust parts, engine covers, brackets, and high-formability structural parts.
Chemical Composition

Chemical properties of SS 410DB coils

The controlled carbon content and precise chromium levels ensure high mechanical performance alongside superior drawability for fabrication.

Element Composition (%)
Carbon (C) Controlled (Low)
Chromium (Cr) 11.5 – 13.5
Manganese (Mn) ≤ 1.0
Silicon (Si) ≤ 1.0
Phosphorus (P) ≤ 0.04
Sulfur (S) ≤ 0.03
Performance Data

Mechanical properties of SS 410DB Coils

450 – 650
Tensile Strength
MPa — High strength suitable for load-bearing fabricated parts
≥ 275
Yield Strength
MPa — Reliable mechanical integrity under operational loads
22 – 28%
Elongation
Superior ductility for precision deep drawing operations
160 – 200
Hardness (HB)
Balanced for formability and long-term wear resistance
Excellent
Formability
DB grade engineered specifically for complex deep drawing
Cost Information

Price List of SS 410DB Coils

Price Factors

Factors that affect the Cost for SS 410DB Coils

  • Stainless steel raw material market trends
  • Coil dimensions and tolerance requirements
  • Heat treatment and surface finishing
  • Order volume and delivery location
  • Import duties and logistics costs
Get A Free Quote
CONTACT US NOW
Premium SS 410DB Coils with assured quality
📧 info@hrsferritic.com
International Standards

Equivalent Grades to SS 410DB Coils

Global designations for SS 410DB modified for deep drawing.

Standard Grade / Designation
AISI 410DB
ASTM 410 (Modified for Deep Drawing)
UNS S41000 (Modified)
EN 1.4006
EN Symbol X12Cr13
DIN X12Cr13
JIS SUS410 (DDQ/Modified)
BS 410S21
AFNOR Z10C13
GOST 12Х13
GB (China) 1Cr13 / 12Cr13
ISO X12Cr13
📦
Ready Stock Availability & Product Forms
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
  • Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated wooden crates, moisture-protected
Use Cases

Applications and Importance of SS 410DB Coils

✈️ Aerospace
Formed brackets, fasteners, and structural components requiring thermal stability.
⛽ Oil & Gas
Drawn pump parts, valve bodies, and refinery components needing erosion resistance.
🌾 Fertilizer Industry
Drawn components, hoppers, covers, and equipment housings requiring wear resistance.
🧪 Chemical Processing
Deep-drawn shells, valve housings, and pump casings exposed to mildly corrosive chemicals.
🏗️ Construction
Architectural panels, fasteners, and structural reinforcements needing strength and durability.
⚡ Electric Sector & EV
Battery casings, motor housings, brackets, and thermal shields for heat resistance.
🚗 Automotive
Deep-drawn exhaust components, engine covers, brackets, and high-formability parts.
💊 Pharmaceuticals
Equipment enclosures, frames, and formed panels where cleanliness is critical.
Why HRS Ferritic

Why choose HRS Ferritic for SS 410DB Coils?

HRS Ferritic continues to be a preferred SS 410DB Coils / AISI 410DB Coils Importer, delivering performance-driven stainless steel solutions worldwide with assured quality and timely delivery.

Trusted SS 410DB Coils Supplier & Stockist
Materials sourced from valuable and certified mills
Large inventory for immediate global dispatch
Competitive pricing and global export capability
Custom dimensions and tailored finishes available
Experiential importer for critical industrial needs
Complete documentation and mill test certifications
Strong technical and dedicated customer support
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about SS 410DB Coils.

SS 410DB Coils are primarily used in automotive exhaust systems, including manifolds, catalytic converter shells, and muffler components, due to their improved high-temperature oxidation resistance and weldability.
SS 410DB Coils are stabilized with columbium (niobium), which enhances resistance to sensitization during welding, making them suitable for fabricated components exposed to elevated temperatures.
Wider and custom-length SS 410DB Coils increase rolling, handling, and transportation requirements, which directly raises the final cost.
Thicker SS 410DB Coils require more raw material per square meter, increasing weight-based pricing and overall production expenses.
Yes, finishes such as hot rolled, annealed, pickled, or polished require additional processing steps, chemicals, and labor, which add to the final price.
Fluctuations in chromium, niobium (columbium), scrap steel, and energy costs directly influence manufacturing expenses and therefore impact market pricing.
Yes, changes in global steel demand, freight rates, and production capacity can significantly affect the availability and final cost of SS 410DB Coils.
