HRS Ferritic · Certified Manufacturer & Exporter

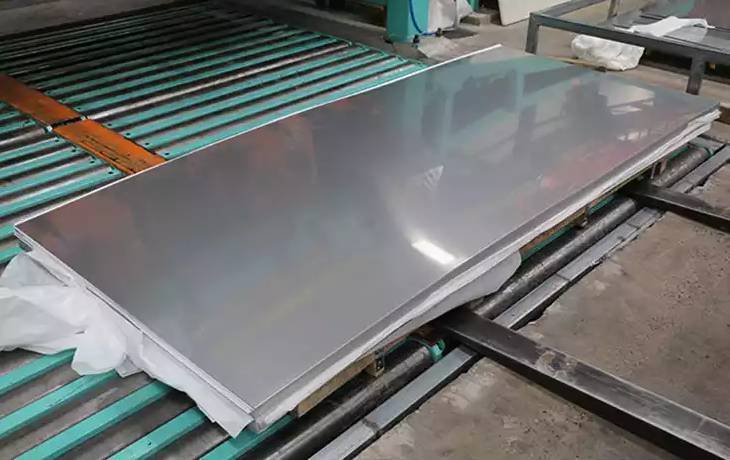

Stainless Steel 410S Sheet
AISI 410S Sheet
Low Carbon Martensitic Grade · Enhanced Corrosion Resistance · Improved Weldability · Global Supply
ASTM A240 / ASME SA240
UNS S41008
EN 1.4000
JIS SUS 410S
📋 Table of Contents
HRS Ferritic · SS 410S Supplier, Stockist & Importer
Introduction to
Stainless Steel 410S Sheet
HRS Ferritic is the global leader in the stainless-steel industry, known for high-quality products and reliable service. We are the leading SS 410S Sheet Supplier, AISI 410S Sheet Stockist & Stainless Steel 410S Importer, offering high-grade sheets sourced directly from certified mills with on-time delivery and technical expertise.
- Excellent corrosion resistance vs. standard carbon steels
- High strength and hardness for mechanical applications
- Low carbon content improves weldability
- Ideal for welded structures and fasteners
- Cost-effective for industrial and infrastructure applications
- Available from a trusted SS 410S stockist
LowCarbon Grade
Grade Overview
Stainless Steel 410S Sheet / AISI 410S Sheet
SS 410S is a martensitic low-carbon stainless steel designed for enhanced corrosion resistance and improved weldability. The reduced carbon content improves toughness and reduces susceptibility to carbide during welding, offering a well-balanced combination of strength and hardness with moderate corrosion resistance.
13%
Chromium Content
Low C
Low Carbon Grade
480–650
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis
Metallurgical Characteristics & Performance
Each element in SS 410S plays a precise role in delivering exceptional durability and mechanical performance.
Fe
Iron
Base metal that forms the main structure of the alloy.
Cr
Chromium
Provides corrosion resistance and improves oxidation resistance.
C
Carbon
Present in low amount; improves strength and hardness while maintaining good weldability.
Mn
Manganese
Enhances toughness and helps improve hot working properties.
Si
Silicon
Improves oxidation resistance and adds strength at high temperatures.
P
Phosphorus
Residual element; increases strength but can reduce ductility if excessive.
S
Sulfur
Improves machinability but may reduce toughness.
Technical Data
Specifications — SS 410S Sheet / AISI 410S Sheet
ASTM A240 · ASME SA240 · UNS S41008
| Specification | Details |
|---|---|
| ASTM / ASME | ASTM A240 / ASME SA240 (Plate, Sheet, and Strip) |
| UNS | S41008 |
| EN | EN 1.4000 |
| DIN | 1.4000 |
| ISO | ISO X6Cr13 |
| JIS | SUS 410S |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Widths | 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm, etc |
| Standard Lengths | 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000 mm, etc |
| Surface Finish | Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP) |
| Supply Condition | Solution Annealed |
| Cutting Methods | Plasma, Laser, Waterjet, Oxy Propane |
| Packaging | Bundled, Wooden Plates, Bubble Wrap, Customized |
Inventory
Available Stock & Product Forms
Sheets
High-quality flat sheet products in various thicknesses for industrial applications.
Pipes
Seamless and welded pipes for high-temperature and corrosion-resistant use.
M. IPA
Modified Austenitic & Ferritic SS with excellent mechanical properties.
Coils & Strips
Precision-rolled coils and strips for specialized forming operations.
Chromium (Cr)
11.5–13.5% — Core element for corrosion and oxidation resistance.
Carbon (C)
≤ 0.08% — Low level ensures improved weldability and ductility.
Manganese (Mn)
≤ 1.00% — Enhances toughness and hot working properties.
Iron (Fe)
Balance — Forms the main structure providing overall strength.
Tensile Strength
480–650 MPa — Exceptional for demanding structural applications.
Yield Strength
275 MPa (min) — Consistent properties for forming operations.
Elongation
20–25% — Excellent ductility for cold-forming.
Hardness
150–200 HB — Consistent machinability and surface quality.
Product Range
Types of Stainless Steel 410S Sheet
We offer all variants of SS 410S sheets with proper certifications and assurances.
Hot Rolled (HR) SS 410S Sheet
Cold Rolled (CR) SS 410S Sheet
SS 410S Sheet, Annealed
Hardened & Tempered SS 410S Sheet
Stainless Steel 410S Sheet, Polished & Coated
Application Sectors
Industries We Serve
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power Industry
Electricity generation and distribution systems.
Ship Building
Marine propulsion and exhaust components.
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition
Chemical Properties of SS 410S Sheet / AISI 410S Sheet
The low carbon content of SS 410S reduces susceptibility to carbide precipitation, improving corrosion resistance and welding quality.
| Element | Percentage (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Chromium (Cr) | 11.5 – 13.5 |
| Manganese (Mn) | ≤ 1.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.03 |
Performance Data
Mechanical Properties of SS 410S Sheet
480–650
Tensile Strength
MPa — Exceptional for demanding structural applications
275
Yield Strength
MPa (min) — Ideal for forming and fabrication
20–25%
Elongation
Excellent ductility for cold-forming
150–200
Hardness
HB — Ensures machinability
Moderate
Impact Resistance
Suitable for moderate stress applications
Cost Information
Pricing List for SS 410S Sheet
Price Factors
What affects the price?
- Cost of raw materials (chromium and nickel alloys)
- Sheet thickness and surface finish
- Heat treatment and processing requirements
- Quantity and customization of the order
- Global demand-supply dynamics
Get Pricing Today
Contact Us
Get the best price by requesting a quote today from HRS!
📧 [email protected]
International Standards
Equivalent Grades for SS 410S Sheet
SS 410S is recognized across all major global standards with equivalent metallurgical designations.
| Standard / Region | Equivalent Grade / Designation |
|---|---|
| ASTM / ASME (USA) | AISI 410S / ASTM A240 / ASME SA240 |
| UNS | S41008 |
| DIN (Germany / EN) | WNr. 1.4000 / X6Cr13 |
| EN (European Norm) | X6Cr13 |
| BS (British Standard) | 410S21 |
| JIS (Japan) | SUS 410S |
| AFNOR (France) | Z3C13 |
| GB (China) | 06Cr13 |
| GOST (Russia) | 08Х13 |
| UNI (Italy) | X6Cr13 |
| AS (Australia) | 410S per AS1449 |
| SIS (Sweden) | 2302 type equivalent |
| ISO | X6Cr13 |
📦
Ready Stock & Product Forms
- Flat Products: Precision sheets, heavy plates, shim sheets
- Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
- Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
- Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
- Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
- Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
- Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
- Export Packaging: ISPM-15 fumigated wooden crates, shrink-wrapped & moisture-protected
Use Cases
Applications of SS 410S Sheet / AISI 410S Sheet
🧪 Chemical Processing
Reactor vessels, piping systems, heat exchangers and storage tanks requiring mild chemical resistance.
⛽ Oil & Gas
Valve bodies, flanges and pump casings under high temperatures and varying pressures.
🚗 Automotive
Exhaust systems, engine brackets, mounting brackets and heat shields.
🏗️ Infrastructure & Construction
Structural support, beams, fasteners, railings, cladding and architectural frameworks.
⚡ Electric Sector & EV Batteries
Battery enclosures, electrical panels, connectors and support frames.
🌾 Fertilizer Industry
Storage bins, chutes, processing equipment and agitators for long-term performance.
💊 Pharmaceuticals
Non-critical processing, shelving and storage units with hygienic and durable surfaces.
✈️ Aerospace
Brackets, housings and non-critical structural elements requiring high strength and corrosion resistance.
Why HRS Ferritic
Why Choose HRS Ferritic for SS 410S Sheets?
HRS Ferritic has a commitment to providing high-quality SS 410S sheet solutions to industries around the world. Our expertise and reliable sourcing mean that clients can rely on an uninterrupted supply of SS 410S Sheets and expert guidance. Contact us for SS 410S Sheet and custom solutions.
Trusted SS 410S Supplier, Stockist & Importer
Sourced from certified mills worldwide
Stocks available for immediate needs
Custom sizes and finishes available
Consistent quality at competitive prices
On-time delivery and professional technical support
EN 10204 3.1 / 3.2 documentation
Supply to 20+ countries worldwide
🇮🇳
Cities We Supply In India
New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia ·
Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar ·
Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur ·
Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍
Countries We Export To
Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE ·
Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia ·
United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support
Frequently Asked Questions
Quick answers to common queries about Stainless Steel 410S Sheet.
SS 410S is a low-carbon martensitic stainless steel sheet offering good corrosion resistance, strength, and improved weldability.
It is used in exhaust systems, heat exchangers, furnace parts and petrochemical equipment.
Yes, its low carbon content improves weldability and reduces cracking risk compared to standard 410.
410S has lower carbon for better weldability, while 410 offers higher hardness and strength.
