Stainless Steel 416 Sheet
AISI 416 Sheet

Martensitic Free-Machining Grade · Sulfur Enhanced · High Hardness & Precision Surface Finish · Global Supply

ASTM A240 / ASME SA240 UNS S41600 EN 1.4005 JIS SUS 416
📋 Table of Contents
1Introduction to SS 416
2Stainless Steel 416 / AISI 416
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of SS 416 Sheet
7Chemical Properties
8Mechanical Properties
9Pricing List
10Equivalent Grades
11FAQs
HRS Ferritic · SS 416 Supplier & Exporter

Introduction to
Stainless Steel 416 Sheet

HRS Ferritic specializes in ferritic, martensitic and stainless steel products. As a trusted SS 416 Sheet Supplier and SS 416 Sheet Importer, we maintain strong partnerships with ISO-certified and ASTM-certified mills to ensure consistent quality, traceability and compliance with international standards.

  • Superior machinability compared to standard stainless steels
  • Improved mechanical strength after heat treatment
  • Cost-effective for precision parts in mass production
  • Smooth surface finish during machining
  • Faster machining with reduced tool wear
  • Better dimensional accuracy for tight tolerances

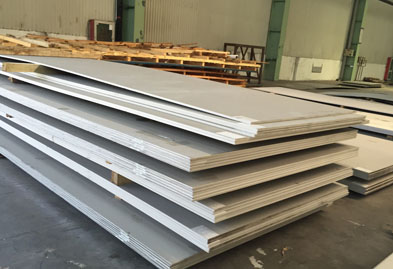

Stainless Steel 416 Sheet in India
416Free-Machining Grade
Grade Overview

Stainless Steel 416 Sheet / AISI 416 Sheet

A martensitic free-machining stainless steel with sulfur inclusions that reduce friction between cutting tool and material. Allows for faster machining, reduced tool wear and better dimensional accuracy. Heat-treated SS 416 gains increased strength and hardness, ideal for wear-resistant and load-bearing components.

12–14%
Chromium Content
S
Sulfur Enhanced
620–760
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis

Metallurgical Characteristics & Performance

Each element in SS 416 plays a precise role in delivering exceptional machinability and mechanical performance.

C
Carbon
Increases hardness and strength; improves machinability but reduces corrosion resistance slightly.
Cr
Chromium
Provides corrosion resistance and oxidation resistance by forming a protective surface layer.
Mn
Manganese
Improves strength, hardness and hot working properties.
Si
Silicon
Enhances strength and oxidation resistance; helps in deoxidizing during steel production.
P
Phosphorus
Improves machinability but can reduce toughness if present in higher amounts.
S
Sulfur
Significantly improves machinability; key element that makes SS 416 a free-machining stainless steel.
Fe
Iron
The base metal forming the primary structure of the alloy.
Technical Data

Specifications — SS 416 Sheet / AISI 416 Sheet

ASTM A240 · ASME SA240 · UNS S41600

Specification Details
ASTM / ASME ASTM A240 / ASME SA240
UNS S41600
EN / DIN EN 1.4005 / 1.4005
ISO X12CrS13
JIS SUS 416
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000, 1219, 1250, 1500, 1800, 2000, 2500, 3000, 3500 mm
Standard Lengths 2000, 2440, 2500, 3000, 5800, 6000 mm
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble Wrap, Customized
Inventory

Available Stock & Product Forms

🪨

Sheets

High-quality flat sheet products in various thicknesses for industrial applications.

🔩

Pipes

Seamless and welded pipes for high-temperature and corrosion-resistant use.

🔲

M. IPA

Modified Austenitic & Ferritic SS with excellent mechanical properties.

🌀

Coils & Strips

Precision-rolled coils and strips for specialized forming operations.

🧪

Chromium (Cr)

12.0–14.0% — Provides corrosion and oxidation resistance.

✨

Sulfur (S)

0.15–0.35% — Key free-machining element; reduces tool wear significantly.

⚫

Carbon (C)

≤ 0.15% — Increases hardness and strength.

⚖️

Manganese (Mn)

≤ 1.25% — Improves strength, hardness and hot working properties.

💪

Tensile Strength

620–760 MPa — High strength for precision structural applications.

🎯

Yield Strength

415 MPa — Consistent properties for machined components.

📏

Elongation

15–20% — Good ductility for fabrication.

🔬

Hardness

Up to 262 HB — Annealed; ensures machinability and surface quality.

Product Range

Types of Stainless Steel 416 Sheet

Choose from a wide range of finishes based on your application and precision requirements.

Hot Rolled SS 416 Sheet
Cold Rolled SS 416 Sheet
Annealed SS 416 Sheet
Hardened & Tempered SS 416 Sheet
Precision Cut SS 416 Sheet
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical Properties of SS 416 Sheet / AISI 416 Sheet

Sulfur is the key element that makes SS 416 a free-machining stainless steel, significantly reducing friction between the cutting tool and material for faster, more precise machining.

Element Percentage (%)
Carbon (C) ≤ 0.15
Chromium (Cr) 12.0 – 14.0
Sulfur (S) 0.15 – 0.35
Manganese (Mn) ≤ 1.25
Silicon (Si) ≤ 1.00
Phosphorus (P) ≤ 0.06
Performance Data

Mechanical Properties of SS 416 Sheet

620–760
Tensile Strength
MPa — High strength for precision structural applications
415
Yield Strength
MPa — Consistent properties for machined components
15–20%
Elongation
Good ductility for fabrication and forming
262 HB
Hardness
Max (annealed) — Ensures machinability and surface quality
Moderate
Impact Resistance
Suitable for medium-impact load-bearing applications
Cost Information

Pricing List for SS 416 Sheet / AISI 416 Sheet

Price Factors

What affects the price?

  • Alloy composition and sulfur content
  • Dimensions and thickness of sheets
  • Heat treatment condition
  • Quantity and delivery schedule
  • Global steel market trends
  • Freight costs and import duties
Get Pricing Today
Get A Quote!
Competitive pricing · Fast replies · Export-ready packaging
📧 info@hrsferritic.com
International Standards

Equivalent Grades for SS 416 Sheet / AISI 416 Sheet

SS 416 is recognized across all major global standards with equivalent metallurgical designations.

Standard / Country Equivalent Grade / Designation
AISI / ASTM (USA) 416 (base original grade)
UNS S41600
EN (Europe) 1.4005
DIN (Germany) X12CrS13
BS (British Standard) 416S21
JIS (Japan) SUS 416
Swedish SS SS 2380
France (AFNOR / NF) Z11CF13
Italy (UNI) X12CrS13
GOST (Russia) 12Х13
GB (China) Y12CrS13 / 1Cr13S
ISO X12CrS13
ASTM / ASME Specs A276, A479, A582, A564
Variants / Related Grades 416L, 416Se, 416CB
📦
Ready Stock & Product Forms
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Logistics
  • Testing: PMI, UT, Radiography, corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE on request
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated crates, shrink-wrapped & moisture-protected
Use Cases

Applications of SS 416 Sheet / AISI 416 Sheet

🌾 Fertilizer Industry
Valves, pumps, shafts and fasteners requiring high machinability.
🧪 Chemical Processing
Precision-machined parts, couplings, fittings and equipment housings.
✈️ Aerospace
Brackets, bushings and machined fittings for aerospace applications.
⛽ Oil & Gas
Pump shafts and valve bodies for oil and gas applications.
💊 Pharmaceutical
Machine frames, precision assemblies and equipment components.
🏗️ Construction
Anchor components and fasteners for structural applications.
⚡ EV & Electrical
Motor shafts, connectors, precision structural components and enclosures.
🚗 Automotive
Gears, transmissions, shafts and fasteners for automotive applications.
Why HRS Ferritic

Why Choose HRS Ferritic for SS 416 Sheets?

HRS Ferritic is dedicated to supplying premium quality SS 416 Sheet / AISI 416 Sheet that meets international standards and supports high-precision industrial applications. Contact us for reliable SS 416 Sheet solutions and expert assistance.

Trusted SS 416 supplier & exporter
ISO and ASTM certified mill partnerships
Stock ready for custom cutting
Global logistics and competitive pricing
Full documentation and test certificates
Technical expertise for precision applications
On-time delivery, export-grade packaging
Supply to 20+ countries worldwide
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about Stainless Steel 416 Sheet.

SS 416 sheet is a martensitic stainless steel sheet known for high strength, good corrosion resistance, and excellent machinability.
SS 416 sheet is commonly used for shafts, valves, fasteners, gears, and other precision-machined components.
Yes, the SS 416 sheet can be heat-treated to increase its hardness and strength, though it has limited weldability.
