HRS Ferritic · Hastelloy C276 Coils - Supplier, Stockist, & Exporter

Hastelloy C276 Coils
UNS N10276 Coils

Exceptional corrosion resistance · Suitable for both oxidizing and reducing environments · High strength and durability · Resistance to pitting and crevice corrosion

ASTM B575 / ASME SB575 UNS N10276 EN 2.4819 / NiMo16Cr15W NW 0276
code Code
📋 Table of Contents
1What are Hastelloy C276 Coils?
2How it Works
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of Hastelloy C276 Coils
7Chemical Details
8Mechanical Properties
9Pricing Information
10Equivalent Grades
11FAQs
HRS Ferritic · Trusted Global Supplier

What are Hastelloy C276 Coils?

Hastelloy C276 Coils are nickel-molybdenum-chromium alloy coils known for their exceptional resistance to corrosion in both oxidizing and reducing environments. These coils are widely used in industries where materials must withstand aggressive chemicals and extreme conditions. HRS Ferritic is a globally trusted name in the alloy industry, recognized as a leading Hastelloy C276 Coils Supplier, Stockist, and Importer, delivering premium-quality materials sourced from valuable and certified manufacturers.

  • Exceptional corrosion resistance
  • Suitable for both oxidizing and reducing environments
  • High strength and durability
  • Resistance to pitting and crevice corrosion
  • Long service life
  • Reliable in harsh industrial conditions

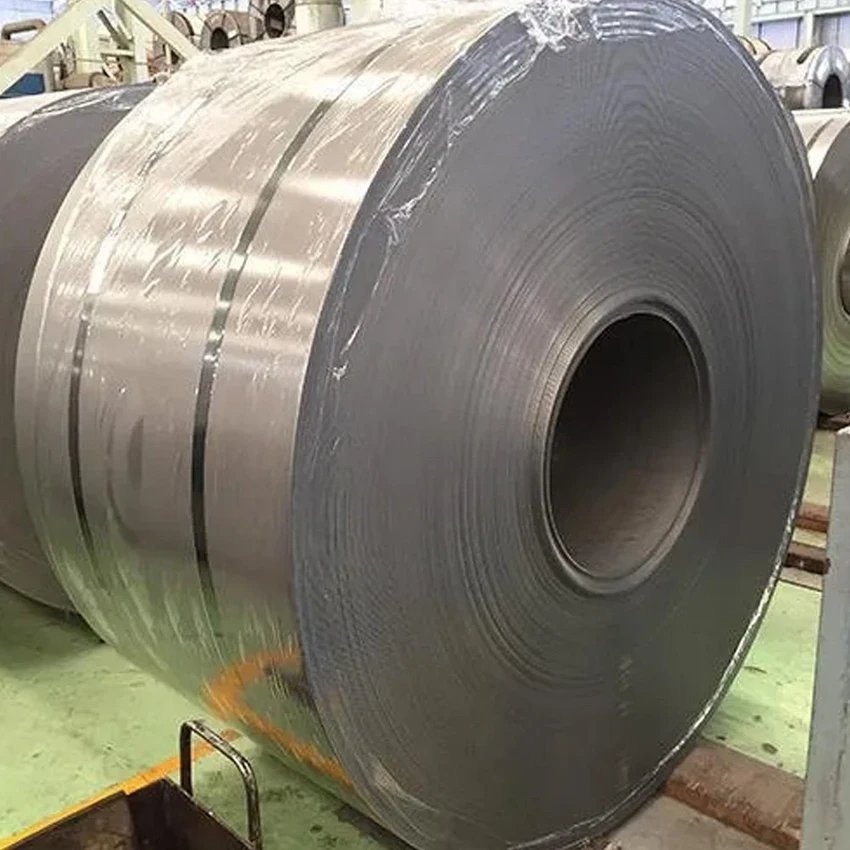

Hastelloy C276 Coils Supplier India
PremiumQuality
Working Mechanism

How Hastelloy C276 Coils Work

Hastelloy C276 Coils work through their advanced alloy composition, where nickel provides resistance to reducing environments while chromium forms a protective oxide layer against oxidizing conditions. Additionally, molybdenum enhances resistance to localized corrosion such as pitting and crevice corrosion.

~57%
Nickel Content
15-17%
Molybdenum Content
690-790
Tensile MPa
0.5-100
Thickness (mm)
Composition Analysis

Metallurgical Characteristics of Hastelloy C276 Coils

Critical alloying elements that provide the superior chemical stability of C276 Grade.

Ni
Nickel
Provides core resistance to reducing environments and structural stability.
Cr
Chromium
Enhances oxidation resistance and protective oxide layer formation.
Mo
Molybdenum
Greatly improves resistance to localized corrosion like pitting.
Fe
Iron
Maintains the overall structural stability of the nickel-base alloy.
W
Tungsten
Further enhances corrosion resistance in extreme chemical environments.
Co
Cobalt
Improves the high-temperature strength and durability of the coils.
Technical Data

Specifications for Hastelloy C276 Coils

ASTM B575 · ASME SB575 · UNS N10276 · DIN 2.4819

Specification Details
ASTM / ASME ASTM B575 / ASME SB575
UNS UNS N10276
EN 2.4819 / NiMo16Cr15W
DIN 2.4819 / NiMo16Cr15W
ISO NiMo16Cr15W
JIS NW 0276
Product Form Sheets / Plates / Coils
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000, 1219, 1250, 1500, 1800, 2000, 2500, 3000, 3500 mm, etc
Standard Lengths 2000, 2440, 2500, 3000, 5800, 6000 mm, etc
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble wraps, Customized
Inventory

Available Stock & Product Forms

📄

Flat Products

Precision sheets, heavy plates, and shim sheets available in Hastelloy C276.

🌀

Coils & Strips

Slitting coils, perforated coils, and thin foils from 0.05 mm thickness.

🪨

Specialty Forms

Circles, rings, custom-cut blanks, and chequered plates tailored to specs.

✂️

Edge Types

Mill edge, slit edge, round edge, and square edge conditions available.

🧪

Nickel (Ni)

~57% — Provides resistance to reducing environments.

💎

Chromium (Cr)

14.5–16.5% — Enhances oxidation resistance and stability.

⚫

Molybdenum (Mo)

15.0–17.0% — Greatly improves pitting and localized resistance.

⚙️

Tungsten (W)

3.0–4.5% — Further enhances corrosion performance.

💪

Tensile Strength

690–790 MPa — High strength for extreme structural demands.

🎯

Yield Strength

≥ 283 MPa — Solid structural integrity under pressure.

📏

Elongation

≥ 40% — Excellent ductility for complex fabrication.

🔬

Hardness

≤ 100 HRB — Balanced hardness for durability and forming.

Product Range

Types of Hastelloy C276 Coils

Available in multiple finishes and edge conditions for high-performance needs.

Hot Rolled Hastelloy C276 Coils
Cold Rolled Hastelloy C276 Coils
Bright Annealed Coils
Slit Edge Coils
Polished Coils
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical Details of Hastelloy C276 Coils

Detailed elemental percentage analysis for UNS N10276 alloy.

Element Percentage (%)
Nickel (Ni) Balance (~57%)
Molybdenum (Mo) 15.0 – 17.0
Chromium (Cr) 14.5 – 16.5
Iron (Fe) 4.0 – 7.0
Tungsten (W) 3.0 – 4.5
Cobalt (Co) ≤ 2.5
Manganese (Mn) ≤ 1.0
Vanadium (V) ≤ 0.35
Silicon (Si) ≤ 0.08
Carbon (C) ≤ 0.01
Phosphorus (P) ≤ 0.04
Sulfur (S) ≤ 0.03
Performance Data

Mechanical Properties of Hastelloy C276 Coils

690–790
Tensile Strength
MPa — Ultimate structural load capacity for N10276
≥ 283
Yield Strength
MPa — 0.2% Offset Yield Strength for stability
≥ 40%
Elongation
High ductility for extreme industrial fabrication
≤ 100 HRB
Hardness
Optimal Rockwell hardness for durability and forming
8.89 g/cm³
Density
Specific mass for heavy industrial weight calculations
205 GPa
Elastic Modulus
Structural stiffness for high-performance systems
Cost Information

Price List for Hastelloy C276 Coils

Price Factors

What affects the Hastelloy C276 price?

  • Raw material price fluctuations (Nickel, Mo)
  • Thickness and dimensions of the coils
  • Surface finish requirements
  • Current market demand and order quantity
  • Logistics and global freight costs
  • Fabrication readiness and custom sizing
Get Pricing Today
Get A Quote!
Competitive rates · High quality · Global delivery
📧 info@hrsferritic.com
International Standards

Equivalent Grades for Hastelloy C276 Coils

Cross-reference table for international designations of N10276.

Standard Equivalent Grade / Designation
UNS N10276
EN / DIN 2.4819 / NiMo16Cr15W
JIS (Japan) NW 0276
BS (British Standard) NA 45
GOST (Russia) ХН65МВУ / ЭП760
AFNOR (France) NC17D16MoW
NACE Compliance MR0175 / ISO 15156
📦
Ready Stock Availability
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality & Logistics
  • Testing: PMI, Ultrasonic (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance on request
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Grade: ISPM-15 fumigated wooden crates, moisture-protected packaging
Use Cases

Applications of Hastelloy C276 Coils

✈️ Aerospace
Used in aerospace components exposed to corrosive environments and temperature variations.
⛽ Oil & Gas
Ideal for pipelines, platforms, and processing equipment needing safety and efficiency.
🌾 Fertilizer Industry
Used in handling aggressive chemicals in reactors, storage tanks, and equipment.
⚡ Electric & EV
Resistance to heat and corrosion ensures reliability in modern EV battery technologies.
🏗️ Construction
Provides long-lasting performance in infrastructure exposed to chemical or environment corrosion.
🧪 Chemical Processing
Superior resistance to aggressive chemicals in reactors, piping, and heat exchangers.
🚗 Automotive
Applied in exhaust systems and high-performance parts operating under extreme conditions.
💊 Pharmaceuticals
Ensures product purity and safe manufacturing in sensitive, high-corrosion environments.
Why HRS Ferritic

Why Choose HRS Ferritic for Hastelloy C276 Coils?

HRS Ferritic is committed to delivering high-performance alloy solutions with reliability and efficiency. We source materials from certified manufacturers to ensure consistent quality and provide customized solutions for critical industrial needs.

Leading Hastelloy C276 Coils Supplier
Reliable Hastelloy C276 Coils Stockist
Trusted Hastelloy C276 Coils Importer
Competitive pricing based on market value
Wide inventory with ready stock availability
Fast delivery and global logistics capability
Complete quality testing and certification
Dedicated expert assistance for every order
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about Hastelloy C276 Coils.

Larger coil sizes increase material usage and handling requirements, raising final costs when purchasing from a Hastelloy C276 Coils Supplier for industrial applications.
Thicker Hastelloy C276 Coils require more raw material and processing, increasing overall pricing when sourced from a Hastelloy C276 Coils Stockist or manufacturer.
Advanced finishes like polished or bright annealed increase processing complexity, raising costs when purchased from a Hastelloy C276 Coils Importer due to additional requirements.
Yes, fluctuations in nickel, molybdenum, and tungsten directly impact pricing offered by any Hastelloy C276 Coils Supplier in the global market.
Custom sizes increase production complexity and cost, making them more expensive when sourced from a Hastelloy C276 Coils Stockist due to additional processing needs.
Bulk orders reduce per-unit cost due to economies of scale, making purchases from a Hastelloy C276 Coils Importer more cost-effective for large industrial requirements.
Hastelloy C276 Coils are ideal for chemical and pollution control industries due to superior corrosion resistance, making them a preferred choice from a trusted Hastelloy C276 Coils Supplier.
