HRS Ferritic · Global Supplier & Exporter

SS 409 Coils / AISI 409 Coils
Stockist & Supplier

Titanium Stabilized Ferritic Grade · High Oxidation Resistance · Economical Heat Resistance · Superior Formability · Global Quality Standard

AISI 409 · UNS S40900 ASTM A240 / ASME SA240 EN 1.4512 Titanium Stabilized
📋 Table of Contents
1Introduction to SS 409
2Overview & Mechanism
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of SS 409 Coils
7Chemical Properties
8Mechanical Properties
9Pricing Information
10Equivalent Grades
11FAQs
HRS Ferritic · Global SS 409 Provider

SS 409 Coils / AISI 409 Coils
Supplier, Stockist & Exporter

HRS Ferritic is an established manufacturer and supplier of top-quality ferritic stainless products. With a concentration on quality, consistency and conformity, the company has established itself as a reliable SS 409 Coils/ AISI 409 Coils supplier with a wide range of industrial sectors across the globe. By procuring material from high-quality and certified mills, we operate as a trustworthy stockist and importer of premium products that are guaranteed to be of high-quality as well as competitive prices and prompt delivery.

  • Economical corrosion resistance
  • High oxidation resistance at temp
  • Titanium stabilized for welding
  • Superior shapeability and ductility
  • Reliable heat fatigue resistance
  • Cost-effective ferritic solution

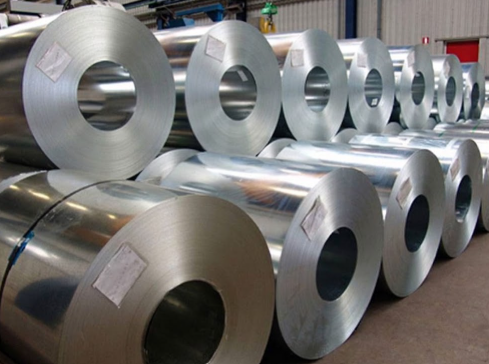

SS 409 Coils Supplier
AISI409 Grade
Product Overview

What are SS 409 Coils or AISI 409 Coils?

SS 409 Coils are stainless steel ferritic coils, mostly made of chromium and stabilized by titanium. This grade provides high oxidation resistance, superior shapeability, and cost efficiency. The ferritic structure offers protection against thermal fatigue and oxidation at high temperatures, while Titanium stabilization helps prevent intergranular corrosion when welding, ensuring weld and dimensional stability in hot environments.

S40900
UNS Code
≥ 170
Yield (MPa)
380-450
Tensile (MPa)
1.4512
EN Grade
Composition Analysis

Metallurgical Characteristics & Performance

Key alloying elements that define the high-temperature performance of SS 409.

Cr
Chromium
Provides corrosion and oxidation resistance by forming a protective oxide layer.
Ti
Titanium
Stabilizes carbon to prevent intergranular corrosion and improves weldability.
Mn
Manganese
Enhances strength, toughness, and hot working properties.
Si
Silicon
Improves oxidation resistance and high-temperature structural stability.
C
Carbon
Controlled level to maintain ideal weldability and corrosion resistance.
Fe
Iron
Forms the base ferritic structure providing magnetic properties.
Technical Data

Specifications for SS 409 Coils / AISI 409 Coils

ASTM A240 · UNS S40900 · EN 1.4512 · ISO X2CrTi12

Specification Details
ASTM / ASME ASTM A240 / ASME SA240 (Plate, Sheet, and Strip)
UNS S40900
EN / DIN 1.4512
ISO ISO X2CrTi12
JIS SUS 409
Product Form Coils
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000 mm, 1219 mm, 1250 mm, 1500 mm, 1800 mm, 2000 mm, 2500 mm, etc
Standard Lengths 2000 mm, 2440 mm, 2500 mm, 3000 mm, 5800 mm, 6000 mm, etc
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble Wraps, Customized
Inventory

Available Stock & Product Forms

🌀

Coils & Strips

Slitting coils, perforated coils, and thin foils starting from 0.05 mm.

🪨

Flat Products

Precision sheets, heavy plates, and shim sheets available for all industrial sectors.

🔘

Circles & Rings

Custom-cut blanks, circles, and rings tailored as per industry requirements.

🏁

Chequered Plate

Tread plates and textured surfaces for structural and construction utility.

✨

Chromium (Cr)

10.5 – 11.75% — Foundational element for oxidation and corrosion resistance.

💠

Titanium (Ti)

Stabilized — Prevents intergranular corrosion and improves weld performance.

⚫

Carbon (C)

≤ 0.08% — Controlled level for maintaining weldability and ductility.

⚖️

Manganese (Mn)

≤ 1.00% — Enhances structural strength and deoxidation properties.

💪

Tensile Strength

380 – 450 MPa — Reliable structural integrity under load.

🎯

Yield Strength

≥ 170 MPa — Stable yield threshold for industrial fabrication.

📏

Elongation

≥ 20% — Good ductility for shaping and bending operations.

💎

Hardness

≤ 200 HB — Brinell hardness ensured for balanced machinability.

Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Product Categories

Types of SS 409 Coils / AISI 409 Coils

We provide all versions with complete traceability of materials from certified sources.

Hot Rolled SS 409 Coils
Cold-rolled AISI 409 Coils
Pickled and Annealed Coils
Slitted SS 409 Coils
Polished AISI 409 Coils
Chemical Composition

Chemical Property of SS 409 Coils / AISI 409 Coils

Precise stabilization with titanium ensures protection against intergranular corrosion during welding operations.

Element Composition (%)
Chromium (Cr) 10.5 – 11.75
Carbon (C) ≤ 0.08
Titanium (Ti) Stabilized
Manganese (Mn) ≤ 1.00
Silicon (Si) ≤ 1.00
Phosphorus (P) ≤ 0.04
Sulfur (S) ≤ 0.02
Performance Data

Mechanical properties of SS 409 Coils / AISI 409 Coils

380 – 450
Tensile Strength
MPa — Dependable structural stability under heat
≥ 170
Yield Strength
MPa — Reliable yield threshold for fabrication
≥ 20%
Elongation
Good ductility for intricate shaping operations
≤ 200
Hardness
Brinell (HB) — Ensures balanced machinability
Cost Information

Price list for SS 409 Coils / AISI 409 Coils

Pricing Factors

What Influences the Cost?

  • Chromium and alloy prices
  • Dimensions of the coil and surface finish
  • Manufacturing process (hot/cold rolling)
  • Order quantity
  • Import duties and logistics
Get Best Value
Contact HRS!
Affordable pricing and real-time expert quotes
📧 info@hrsferritic.com
Global Standards

Equivalent Grades SS 409 Coils / AISI 409 Coils

AISI 409 is recognized globally for its heat and oxidation resistance.

Standard Equivalent Grade
AISI / UNS (USA) 409 / S40900
ASTM / ASME (USA) A240 Type 409 / SA 240 Type 409
EN / DIN (Europe/Germany) 1.4512 / X2CrTi12
JIS (Japan) SUS 409
BS (UK) 409S19
IS (India) IS 6911 – X02Cr12Ti
ISO X2CrTi12
AFNOR (France) Z2CT12
📦
Ready Stock Availability
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils (from 0.05 mm)
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality & Logistics
  • Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Packaging: ISPM-15 wooden crates, shrink-wrapped & moisture-protected
Engineering Use

Applications and Importance of SS 409 Coils

🌾 Fertilizer Industry
Shells for heat exchangers, process gas ducts, and casings for pre-heater furnaces.
🧪 Chemical Processing
Outer shells of reactors, storage vessels, and ducting systems exposed to moderate corrosion.
✈️ Aerospace
Non-load-bearing structural panels, thermal shields, and secondary exhaust ducting.
⛽ Oil & Gas Sector
Refinery exhaust stacks, furnace lines, flare ducting, and heater shells.
💊 Pharmaceuticals
Enclosures for non-contact equipment, HVAC ducting, and dryer housings.
🏗️ Infrastructure
Architectural sheets, cladding, tunnel linings, and industrial construction covers.
⚡ EV & Electric
Enclosures for battery packs, thermal management shields, and inverter housings.
🚗 Automotive
Exhaust manifolds, mufflers, catalytic converter pipes, and heat shields.
Why Choose HRS

Why choose HRS Ferritic for SS 409 Coils?

HRS Ferritic is committed to supplying top-quality ferritic stainless products that exceed international standards and customer expectations. With global reach and technological knowledge, we are your ideal partner for AISI/SS 409 Coils.

Leading Manufacturer & Supplier of SS 409
Dependable Global Importer and Stockist network
Materials sourced from certified reputable mills
Specific sizes, finishes and custom designs
Competitive pricing & timely delivery
Strong technical support and expert sales assistance
Serving 20+ countries worldwide
Comprehensive quality and test certificates
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers about Stainless Steel 409 Coils / AISI 409 Coils.

SS 409 coils are primarily used in automotive exhaust systems, mufflers, catalytic converters, and other applications requiring heat and oxidation resistance at an economical cost.
They are preferred due to their good high-temperature oxidation resistance, weldability, and cost-effectiveness compared to austenitic stainless steels.
SS 409 coils are manufactured through hot rolling or cold rolling processes followed by annealing and pickling to enhance strength, surface finish, and corrosion resistance.
Yes, they are suitable for components exposed to mild corrosive and high-temperature environments, such as heat exchangers and tubing systems.
Thicker SS 409 Coils use more material and require more energy to process, increasing weight-based production and logistics costs.
Yes. Wider or non-standard SS 409 Coils increase material usage and may need additional slitting or specialized handling, raising the final price.
Improved finishes like pickled, bright, or coated involve extra processing and inspection stages, which increases the total cost.
Prices follow trends in iron, chromium, and nickel scrap; any increase in these raw material costs directly raises the global coil prices.
