HRS Ferritic · Trusted Supplier, Stockist & Importer

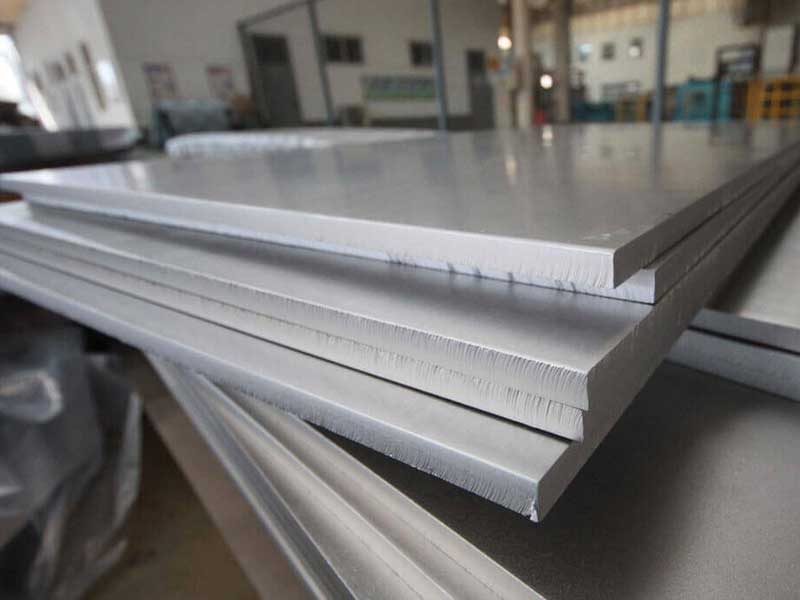

Stainless Steel 430 Sheet
AISI 430 Sheet
Ferritic Grade · 16–18% Chromium · Low Carbon · Magnetic · Excellent Oxidation Resistance · Global Supply
ASTM A240 / ASME SA240
UNS S43000
EN 1.4016
JIS SUS 430
📋 Table of Contents
HRS Ferritic · SS 430 Sheet Supplier, Stockist & Importer
SS 430 Sheet / AISI 430 Sheet
Supplier, Stockist & Importer
HRS Ferritic is a well-established organization in the stainless-steel industry, known for our high-quality ferritic products. We are a trusted SS 430 sheet Supplier, SS 430 sheets Stockist and AISI 430 sheet Importer — focusing on reliability, consistency and customer satisfaction. We source only from reputable, certified manufacturers to ensure every SS 430 sheet meets strict international quality standards.
- Stable chromium-oxide passive layer prevents rust
- Good thermal conductivity and magnetic properties
- Resistant to scaling at high temperatures
- Ferritic microstructure resists stress corrosion
- Non-hardenable — easy to cut, bend and weld
- Cost-effective alternative to nickel-containing grades
18%Chromium Content
Grade Overview
Introduction — Stainless Steel 430 Sheet / AISI 430 Sheet
SS 430 sheet is a ferritic grade containing 16–18% chromium with low carbon content, offering excellent corrosion and oxidation resistance. Unlike austenitic steels, SS 430 has good thermal conductivity and is magnetic — ideal for both decorative and functional applications at a lower cost than nickel-containing grades.
16–18%
Chromium Content
Ferritic
Microstructure
450–600
Tensile Strength MPa
0.5–100
Thickness Range mm
Composition Analysis
Metallurgical Characteristics of SS 430 Sheet
Each element in SS 430 contributes precisely to its corrosion resistance, formability and magnetic performance.
Fe
Iron
Base metal forming the primary structure of the alloy.
Cr
Chromium
Provides corrosion and oxidation resistance by forming a passive protective layer.
C
Carbon
Adds strength and hardness; excessive carbon can reduce corrosion resistance.
Mn
Manganese
Improves strength and toughness; assists in hot working properties.
Si
Silicon
Enhances strength, oxidation resistance, and acts as a deoxidizer during steel production.
P
Phosphorus
Improves machinability but can reduce toughness if present in high amounts.
S
Sulfur
Small amounts may improve machinability; excess can reduce corrosion resistance and toughness.
Ni
Nickel
Often minimal in 430; can slightly improve corrosion resistance.
Technical Data
Specifications — SS 430 Sheet / AISI 430 Sheet
ASTM A240 · ASME SA240 · UNS S43000
| Specification | Details |
|---|---|
| ASTM / ASME | ASTM A240 / ASME SA240 (Plate, Sheet, and Strip) |
| UNS | UNS S43000 |
| EN / DIN | EN 1.4016 / 1.4016 |
| ISO | X6Cr17 |
| JIS | SUS 430 |
| Product Form | Sheets / Plates |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Widths | 1000, 1219, 1250, 1500, 1800, 2000, 2500, 3000, 3500 mm |
| Standard Lengths | 2000, 2440, 2500, 3000, 5800, 6000 mm |
| Surface Finish | Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP) |
| Supply Condition | Solution Annealed |
| Cutting Methods | Plasma, Laser, Waterjet, Oxy Propane |
| Packaging | Bundled, Wooden Plates, Bubble Wrap, Customized |
Inventory
Available Stock & Product Forms
Sheets
High-quality flat sheets in standard and custom thicknesses for decorative and functional use.
Plates
Heavy plates and precision sheets for structural and industrial applications.
Mirror & Polished
Mirror and polished finish sheets for decorative and aesthetic applications.
Coils & Strips
Slitting coils, perforated coils and thin foils for precision forming operations.
Chromium (Cr)
16.0–18.0% — Core element for corrosion and oxidation resistance.
Carbon (C)
≤ 0.12% — Low level maintains formability and weldability.
Manganese (Mn)
≤ 1.00% — Improves strength and hot working properties.
Iron (Fe)
Balance — Structural base providing strength and magnetic properties.
Tensile Strength
450–600 MPa — Reliable for structural and decorative applications.
Yield Strength
≥ 205 MPa — Consistent properties for forming operations.
Elongation
22% min — Good ductility for forming and fabrication.
Hardness
≤ 183 HB — Ensures consistent machinability and surface quality.
Product Range
Types of SS 430 Sheet / AISI 430 Sheet
We have a variety of SS 430 Sheets to meet different operational requirements.
Cold Rolled SS 430 Sheet for Precision Applications
Hot Rolled SS 430 Sheets for Structural Purposes
Mirror and Polished Finish SS 430 Sheet
Matt and Brushed Finish SS 430 Sheet
Custom SS 430 Sheet According to Drawings
Application Sectors
Industries We Serve
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power Industry
Electricity generation and distribution systems.
Ship Building
Marine propulsion and exhaust components.
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition
Chemical Properties of SS 430 Sheet / AISI 430 Sheet
The stable chromium-oxide passive layer of SS 430 acts as a barrier to moisture, air and mild chemicals — preventing rust and corrosion for long-term performance.
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Carbon (C) | ≤ 0.12 |
| Manganese (Mn) | ≤ 1.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Performance Data
Mechanical Properties of SS 430 Sheet / AISI 430 Sheet
450–600
Tensile Strength
MPa — Reliable for structural and decorative applications
≥ 205
Yield Strength
MPa — Consistent for forming and fabrication
22%
Elongation
Minimum — Good ductility for forming processes
≤ 183 HB
Hardness
Maximum — Consistent machinability and surface quality
200 GPa
Modulus of Elasticity
High stiffness for structural reliability
Cost Information
Price List for SS 430 Sheet / AISI 430 Sheet
Price Factors
What affects the price?
- Chromium alloys market fluctuations
- Manufacturing process (Hot Rolled or Cold Rolled)
- Dimensions and tolerances of sheets
- Surface finishing and polishing costs
- Import duties and freight
Get a Free Quote
Request a Quote!
Competitive pricing · No compromise on quality · Fast replies
📧 [email protected]
International Standards
Equivalent Grades for SS 430 Sheet / AISI 430 Sheet
SS 430 is recognized across all major global standards with equivalent metallurgical designations.
| Standard / System | Equivalent Designation for SS 430 Sheet |
|---|---|
| AISI / ASTM (USA) | 430 (AISI 430) |
| UNS | S43000 |
| ISO (International) | X6Cr17 / ISO corresponding to 430 ferritic grade |
| EN (Europe) | 1.4016 / X6Cr17 |
| DIN (Germany) | 1.4016 / X6Cr17 |
| JIS (Japan) | SUS 430 |
| BS (British Standard) | 430 S17 |
| AFNOR (France) | Z8C17 |
| SIS (Sweden) | 142320 |
| UNI (Italy) | X12Cr17C |
| GB (China) | 10Cr17 / 1Cr17 |
| GOST (Russia / CIS) | 12X17 |
📦
Ready Stock & Product Forms
- Flat Products: Precision sheets, heavy plates, shim sheets
- Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
- Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
- Edge Conditions: Mill edge, slit edge, round edge, square edge
🏭
Quality Assurance & Global Logistics
- Testing: PMI, Ultrasonic Testing (UT), Radiography (RT), corrosion testing
- Certification: EN 10204 3.1 / 3.2, NACE compliance (on request)
- Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
- Export Packaging: ISPM-15 fumigated wooden crates, shrink-wrapped & moisture-protected
Use Cases
Importance and Applications of SS 430 Sheet
🌾 Fertilizer Industry
Storage units, processing equipment and panels resistant to mild chemicals.
🧪 Chemical Processing
Structural components, vessels and enclosures requiring oxidation resistance.
✈️ Aerospace
Interior and non-critical aircraft components requiring good formability.
⛽ Oil & Gas
Heat shields, support structures and cladding in high-temperature environments.
💊 Pharmaceuticals
Cleanrooms, equipment housings and hygienic surfaces for easy cleaning.
🏗️ Construction & Infrastructure
Architectural facades and roofing requiring durability and an attractive finish.
⚡ EV & Electrical
Thermal shields and structural housings for electrical and EV battery systems.
🚗 Automotive
Trims, mufflers and decorative parts used extensively across vehicle types.
Why HRS Ferritic
Why Choose HRS Ferritic for SS 430 Sheet / AISI 430 Sheet?
HRS Ferritic is a reliable partner in the production of ferritic stainless products. We are the leader in the stainless steel industry because of our technical expertise, ethical practices and customer-focused approach. Contact us to order premium SS 430 sheets at affordable prices.
Leading SS 430 Supplier, Stockist & Importer
Materials from approved, valued global mills
Stocks available immediately
Test certification and strict quality control
Custom sizes and finishes available
Bulk supply with competitive pricing
On-time delivery and reliable packaging
Supply to 20+ countries worldwide
🇮🇳
Cities We Supply In India
New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia ·
Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar ·
Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur ·
Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍
Countries We Export To
Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE ·
Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia ·
United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support
Frequently Asked Questions
Quick answers to common queries about Stainless Steel 430 Sheet / AISI 430 Sheet.
SS 430 is a ferritic stainless steel with good corrosion resistance, formability, and magnetic properties.
It is commonly used in kitchen appliances, automotive trim, industrial equipment, and decorative panels.
Yes, it is magnetic and can be welded using standard TIG or MIG methods.
