HRS Ferritic · Nickel 200/201 Coils Supplier, Stockist & Importer

Nickel 200/201 Coils
Nickel 200/201 Coils

Excellent Corrosion Resistance · High Thermal Conductivity · Outstanding Mechanical Properties · Global Industrial Supply

ASTM B162 / ASME SB162 UNS N02200 / N02201 EN 2.4066 / 2.4068 NW 2200 / NW 2201
📋 Table of Contents
1What are Nickel 200/201 Coils?
2How it Works
3Metallurgical Characteristics
4Specifications
5Available Stock
6Types of Nickel 200/201 Coils
7Chemical Details
8Mechanical Properties
9Pricing Information
10Equivalent Grades
11FAQs
HRS Ferritic · Globally Trusted Supplier

What are Nickel 200/201 Coils?

Nickel 200/201 Coils are commercially pure nickel alloy coils known for their excellent corrosion resistance, high thermal conductivity, and outstanding mechanical properties. Nickel 200 is ideal for moderate temperature applications, while Nickel 201 offers improved performance in higher temperature environments due to lower carbon content. These coils are widely used in industries that require resistance to caustic environments and high-purity material performance.

  • Excellent corrosion resistance in alkaline environments
  • High thermal and electrical conductivity
  • Good mechanical strength
  • Suitable for high-temperature applications
  • Long service life
  • Reliable performance in chemical industries

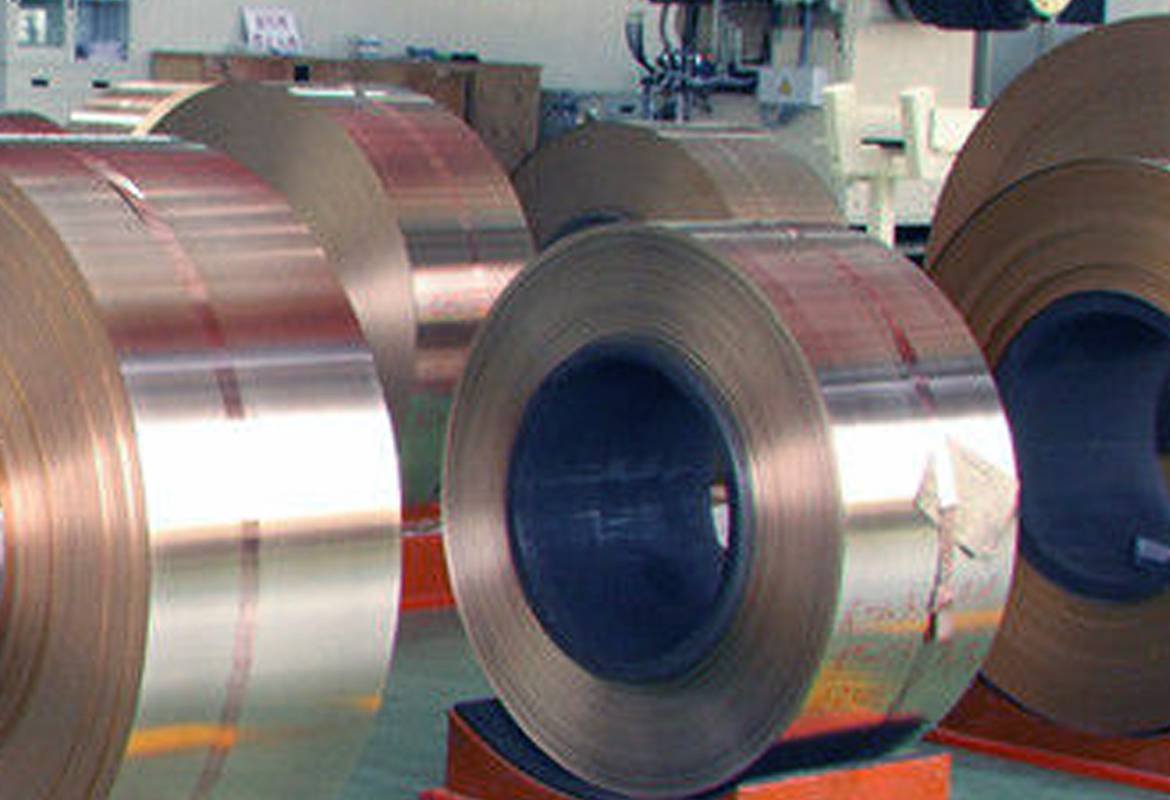

Nickel 200/201 Coils Supplier India
HighPurity
Working Mechanism

How Nickel 200/201 Coils Work

Nickel 200/201 Coils function through their high nickel content, which provides excellent resistance to corrosion, especially in alkaline and neutral environments. The alloy forms a stable oxide layer that protects the surface. The low carbon content in Nickel 201 specifically enhances resistance to embrittlement at elevated temperatures.

≥ 99.0%
Nickel Content
8.89
Density (g/cm³)
1435+
Melting Point °C
0.5-100
Thickness (mm)
Composition Analysis

Metallurgical Characteristics of Nickel 200/201 Coils

Key elements that define the high-purity performance of Nickel 200/201 alloys.

Ni
Nickel
Provides the primary corrosion resistance and material purity.
Fe
Iron
Adds essential structural strength to the pure nickel base.
Mn
Manganese
Improves the overall workability of the alloy during processing.
Si
Silicon
Enhances oxidation resistance at various temperature levels.
C
Carbon
Carefully controlled to ensure thermal stability and prevent embrittlement.
Technical Data

Specifications for Nickel 200/201 Coils

ASTM B162 · ASME SB162 · UNS N02200 / N02201 · EN 2.4066 / 2.4068

Specification Details
ASTM / ASME ASTM B162 / ASME SB162
UNS UNS N02200 / UNS N02201
EN / DIN 2.4066 / 2.4068
ISO Ni99.2 / Ni99
JIS NW 2200 / NW 2201
Product Form Sheets / Plates / Coils
Thickness Range 0.5 mm to 100 mm
Standard Widths 1000, 1219, 1250, 1500, 1800, 2000, 2500, 3000, 3500 mm, etc
Standard Lengths 2000, 2440, 2500, 3000, 5800, 6000 mm, etc
Custom Cuts Available as per customer requirement (Width & Length)
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Annealed & Pickled (AP)
Supply Condition Solution Annealed
Cutting Methods Plasma, Laser, Waterjet, Oxy Propane
Packaging Bundled, Wooden Plates, Bubble wraps, Customized
Inventory

Available Stock & Product Forms

🌀

Coils & Strips

Slitting coils, perforated coils, and thin foils from 0.05 mm maintained in stock.

📄

Flat Products

Precision sheets, heavy plates, and shim sheets available in various specifications.

🪨

Specialty Forms

Circles, rings, custom-cut blanks, and chequered plates tailored to industrial needs.

✂️

Edge Conditions

Mill edge, slit edge, round edge, and square edge options for all coil variants.

🧪

Nickel (Ni)

≥ 99.0% — The primary base for exceptional purity and corrosion resistance.

💎

Copper (Cu)

≤ 0.25% — Managed levels to maintain chemical stability.

⚙️

Iron (Fe)

≤ 0.40% — Contributes to the overall structural strength of the coil.

🔬

Manganese (Mn)

≤ 0.35% — Ensures better workability during fabrication processes.

💪

Tensile Strength

380 – 550 MPa — High ultimate strength for demanding industrial loads.

🎯

Yield Strength

100 – 240 MPa — 0.2% Offset Yield Strength for structural reliability.

📏

Elongation

40 – 50 % — Superior ductility for complex forming operations.

🔬

Hardness

45 – 80 HRB — Balanced hardness for durability and forming flexibility.

Product Range

Types of Nickel 200/201 Coils

Available in multiple finishes and configurations for diverse caustic environments.

Hot Rolled Nickel 200/201 Coils
Cold Rolled Nickel 200/201 Coils
Bright Annealed Coils
Slit Edge Coils
Polished Coils
Annealed & Pickled Coils
Application Sectors

Industries We Serve

Sugar
Sugar Industry
Global cane and beet processing requiring thermal endurance.
Power
Power Industry
Electricity generation and distribution systems.
Ship Building
Ship Building
Marine propulsion and exhaust components.
Mechanical
Mechanical & Plant Engineering
Industrial machinery design solutions.
Food
Food, Beverage & Dairy
Processed food manufacturing environments.
Oil Gas
Oil & Gas Plant
Refinery furnace units and burner assemblies.
Chemical Composition

Chemical Details of Nickel 200/201 Coils

Composition breakdown for high-purity Nickel 200 and low-carbon 201 grades.

Element Nickel 200 (%) Nickel 201 (%)
Nickel (Ni) ≥ 99.0 ≥ 99.0
Copper (Cu) ≤ 0.25 ≤ 0.25
Iron (Fe) ≤ 0.40 ≤ 0.40
Manganese (Mn) ≤ 0.35 ≤ 0.35
Carbon (C) ≤ 0.15 ≤ 0.02
Silicon (Si) ≤ 0.35 ≤ 0.35
Sulfur (S) ≤ 0.01 ≤ 0.01
Performance Data

Mechanical Properties of Nickel 200/201 Coils

380 – 550
Tensile Strength
MPa — Ultimate strength for reliable structural performance
100 – 240
Yield Strength
MPa — 0.2% Offset Yield for industrial load safety
40 – 50 %
Elongation
Superior ductility in 50 mm/2" for complex fabrication
45 – 80 HRB
Hardness
Rockwell B hardness optimized for durability
200 GPa
Elastic Modulus
Modulus of Elasticity for consistent material stiffness
8.89 g/cm³
Density
High material density characteristic of pure nickel
Cost Information

Price List for Nickel 200/201 Coils

Price Factors

Factors that Affect the Price of Nickel 200/201 Coils

  • Raw material price fluctuations
  • Thickness and size of the coil
  • Surface finish requirements
  • Bulk order quantity
  • Current market demand
  • Logistics and import duties
Get Pricing Today
Get A Quote!
Competitive rates · High quality · Global delivery
📧 info@hrsferritic.com
International Standards

Equivalent Grades for Nickel 200/201 Coils

Cross-reference table for international designations of Nickel 200 and 201.

Standard Nickel 200 Nickel 201
UNS N02200 N02201
Werkstoff (DIN) 2.4066 2.4068
EN (Numeric) 2.4066 2.4068
EN (Name) Ni99.2 Ni99
JIS (Japan) NW 2200 NW 2201
BS (British) NA 11 NA 12
GOST (Russia) НП2 НП2 (LC)
AFNOR (France) N-100M N-100L
📦
Ready Stock Availability
  • Flat Products: Precision sheets, heavy plates, shim sheets
  • Coils & Strips: Slitting coils, perforated coils, thin foils from 0.05 mm
  • Speciality Forms: Circles, rings, custom-cut blanks, chequered (tread) plates
  • Edge Conditions: Mill edge, slit edge, round edge, square edge options
🏭
Quality & Logistics
  • Testing: PMI, Ultrasonic (UT), Radiography (RT), corrosion testing
  • Certification: EN 10204 3.1 / 3.2, NACE compliance on request
  • Global Supply: USA, UAE, Saudi Arabia, Singapore, Indonesia, Europe
  • Export Packaging: ISPM-15 fumigated wooden crates, moisture-protected packaging
Use Cases

Applications of Nickel 200/201 Coils

🏗️ Infrastructure
Used in construction for long-lasting performance in harsh environmental conditions.
🧪 Chemical Industry
Equipment handling caustic substances, ensuring safety and resistance to degradation.
✈️ Aerospace
Components requiring high thermal conductivity and corrosion resistance.
🌾 Fertilizer Industry
Widely used in plants for handling caustic chemicals with excellent durability.
⚡ Electric & EV
Providing high electrical conductivity and thermal stability in battery technologies.
💊 Pharmaceuticals
Used in high-purity processing equipment ensuring strict hygiene standards.
⛽ Oil & Gas
Handling corrosive fluids and alkaline environments in pipelines and storage tanks.
🚗 Automotive
Improving durability and performance in components exposed to thermal conductivity.
Why HRS Ferritic

Why Choose HRS Ferritic for Nickel 200/201 Coils?

HRS Ferritic is a globally trusted name recognized for premium-quality pure nickel materials. We focus on quality and consistency, ensuring each of our products meets international standards for high-purity performance in caustic environments.

Leading Nickel 200/201 Coils Supplier
Reliable Nickel 200/201 Coils Stockist
Trusted Nickel 200/201 Coils Importer
Competitive pricing with full traceability
Wide inventory of various sizes and finishes
Fast and efficient global delivery
🇮🇳

Cities We Supply In India

New Delhi · Ahmedabad · Jaipur · Surat · Salem · Gandhinagar · Varanasi · Haldia · Bhiwandi · Tiruppur · Jamnagar · Thiruvananthapuram · Rajahmundry · Visakhapatnam · Bhubaneswar · Vijaywada · Rajkot · Bharuch · Coimbatore · Nagpur · Raipur · Cochin · Ludhiana · Panipat · Durgapur · Agra · Indore · Kuala Lumpur · Al Jubail · Pimpri-Chinchwad · Sharjah · Karachi · Chandigarh · Bogota · Muscat · Madrid · Tehran · Granada · Jakarta · Los Angeles · Rio de Janeiro · Melbourne · Cairo · New York · Busan · Milan · Montreal · Singapore · Sydney · Dubai · Lagos · Gurgaon · Port-of-Spain · Hong Kong · Navi Mumbai · Secunderabad · Bangkok · Aberdeen · Bhopal · Atyrau · Caracas · Jamshedpur · Thane · Faridabad · Ahvaz · Ahmedabad · Hanoi · Bengaluru · Dallas · Moscow · Surat · Riyadh · Rajkot · Al Khobar · Hyderabad · Haryana · Ernakulam · Gimhae-si · Algiers · Thiruvananthapuram · Brisbane · Calgary · Mumbai · Chennai · Courbevoie · Toronto · Vung Tau · Ankara · Doha · Nagpur · Howrah · Ranchi · Perth · Noida · Houston · Kolkata · Chiyoda · Mexico City · Edmonton. Geoje-si · Abu Dhabi · Santiago · New Delhi · Colombo · Ludhiana · Lahore · Coimbatore · Ho Chi Minh City · Manama · Ulsan · London · Visakhapatnam · Jaipur · Kuwait City · Seoul · Istanbul · Pune · Baroda · Kanpur · La Victoria · Jeddah · Dammam · Petaling Jaya · Nashik · Vadodara ·jamnagar ·hazira · jubail industrial city · Ajman · Capetown · San Francisco · sao paulo · Barcelona · Ahmedi · Muscat · Madrid · Birmingham · Johannesburg.
🌍

Countries We Export To

Saudi Arabia · Qatar · Canada · Sri Lanka · Iran · Nigeria · Bangladesh · Oman · UAE · Turkey · Kuwait · Venezuela · Africa · Singapore · Netherlands · United Kingdom · Mexico · Malaysia · United States · Australia · Japan Saudi Arabia · Iran · Iraq · UAE · Qatar · Bahrain · Oman · Kuwait · Turkey · Yemen · Syria · Jordan · Cyprus · Nigeria · Algeria · Angola · South Africa · Libya · Egypt · Sudan · Equatorial Guinea · The Republic Of Congo · Gabon · USA · Canada · Mexico · Panama · Costa Rica · Puerto Rica · Trinidad And Tobago · Jamaica · Bahamas · Denmark · Russia · Norway · Germany · France · Italy · Uk · Spain · Ukraine · Netherland · Belgium · Greece · Czech Republic · Portugal · Hungary · Albania · Austria · Switzerland · Slovakia · Finland · Ireland · Croatia · Slovenia · Malta · India · Singapore · Malaysia · Indonesia · Thailand · Vietnam · South Korea · Japan · Sri Lanka · Maldives · Bangladesh · Myanmar · Taiwan · Cambodia · Argentina · Bolivia · Brazil · Chile · Venezuela · Colombia · Ecuador · Guyana · Paraguay · Uruguay · New Zealand · Romania · Puerto Rico · Nepal · Kenya · Afghanistan · Lithuania · Belarus · Zimbabwe · Israel · Azerbaijan · Poland · Australia · Morocco · Philippines.
Support

Frequently Asked Questions

Quick answers to common queries about Nickel 200/201 Coils.

Thicker Nickel 200/201 Coils require more raw material and processing, increasing overall cost when sourced from a Nickel 200/201 Coils Stockist or manufacturer.
Yes, fluctuations in nickel prices directly impact pricing offered by any Nickel 200/201 Coils Supplier in the global market.
Larger coil sizes increase material usage and handling costs, raising the final price when purchasing from a Nickel 200/201 Coils Supplier for industrial applications.
Custom sizes increase production complexity and cost, making them more expensive when sourced from a Nickel 200/201 Coils Stockist due to additional processing.
Advanced finishes like polished or bright annealed increase production complexity and cost when purchased from a Nickel 200/201 Coils Importer due to additional processing requirements.
Bulk orders reduce per-unit cost due to economies of scale, making purchases from a Nickel 200/201 Coils Importer more cost-effective for large industrial requirements.
Nickel 200/201 Coils are ideal for chemical and electrical industries due to high purity, corrosion resistance, and conductivity from a trusted Nickel 200/201 Coils Supplier.
